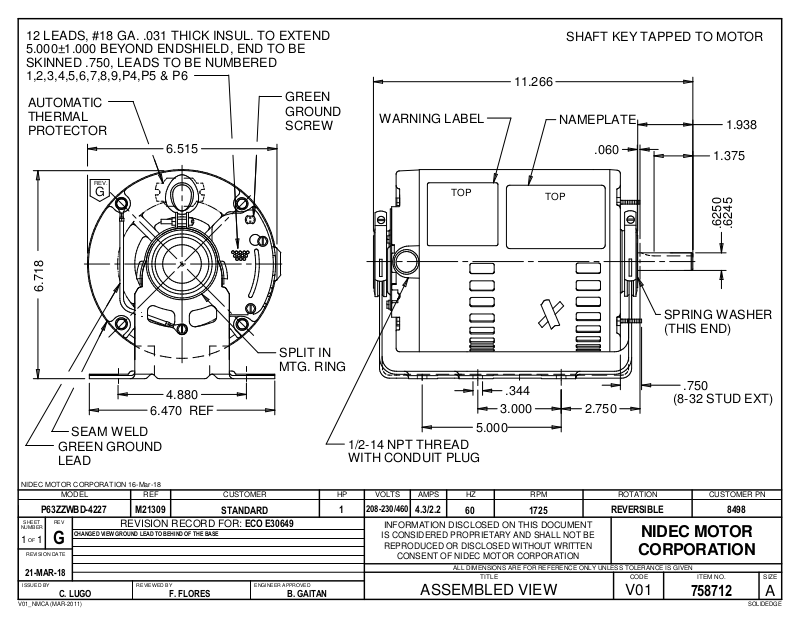

US Motors 8498 Dimensional Sheet

12 LEADS, #18 GA. .031 THICK INSUL. TO EXTEND

5.000±1.000 BEYOND ENDSHIELD, END TO BE
SKINNED .750, LEADS TO BE NUMBERED
1,2,3,4,5,6,7,8,9,P4,P5 & P6

AUTOMATIC
THERMAL
PROTECTOR

GREEN
GROUND
SCREW

WARNING LABEL

11.266

SHAFT KEY TAPPED TO MOTOR

NAMEPLATE

1.938

REV.

G

6.718

SEAM WELD

GREEN GROUND
LEAD

6.515

4.880

6.470 REF

SPLIT IN
MTG. RING

TOP

1/2-14 NPT THREAD
WITH CONDUIT PLUG

TOP

.344

3.000 2.750

5.000

.060

1.375

.6250

.6245

SPRING WASHER
(THIS END)

.750

(8-32 STUD EXT)

NIDEC MOTOR CORPORATION 16-Mar-18

MODEL REF

P63ZZWBD-4227 M21309

SHEET

NUMBER

1 1

ISSUED BY

REV

OF

G

REVISION DATE

21-MAR-18

CHANGED VIEW GROUND LEAD TO BEHIND OF THE BASE

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

C. LUGO

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

ECO E30649

F. FLORES B. GAITAN

1

208-230/460

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

4.3/2.2

CONSENT OF NIDEC MOTOR CORPORATION

60 1725

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

ASSEMBLED VIEW

CUSTOMER PN

REVERSIBLE 8498

NIDEC MOTOR

CORPORATION

V01

758712

A

SOLIDEDGEV01_NMCA (MAR-2011)
