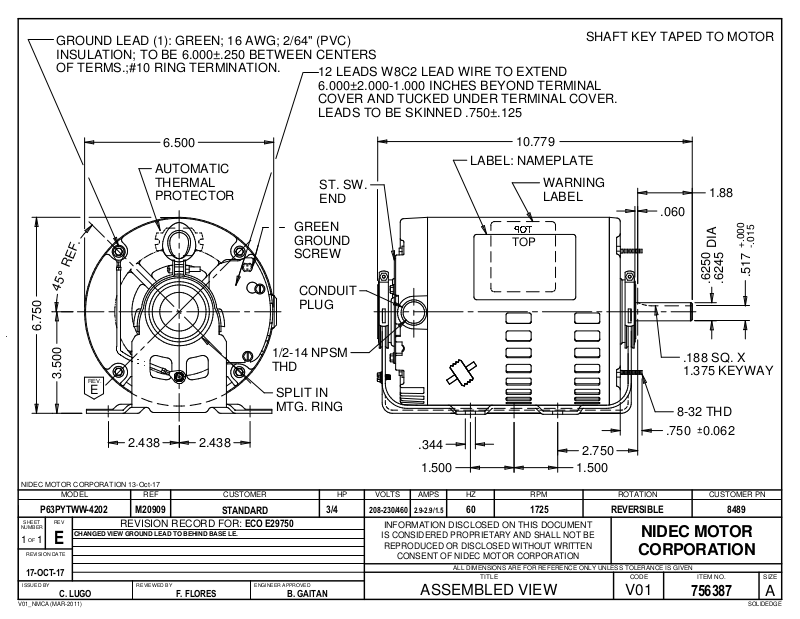

US Motors 8489 Dimensional Sheet

GROUND LEAD (1): GREEN; 16 AWG; 2/64" (PVC) INSULATION; TO BE 6.000±.250 BETWEEN CENTERS OF TERMS.;#10 RING TERMINATION.

12 LEADS W8C2 LEAD WIRE TO EXTEND

6.000±2.000-1.000 INCHES BEYOND TERMINAL COVER AND TUCKED UNDER TERMINAL COVER. LEADS TO BE SKINNED .750±.125

SHAFT KEY TAPED TO MOTOR

6.750

3.500

REV.

2.438 2.438

NIDEC MOTOR CORPORATION 13-Oct-17

MODEL REF

P63PYTWW-4202 M20909

SHEET

NUMBER

1 1

ISSUED BY

REV

REVISION DATE

17-OCT-17

CHANGED VIEW GROUND LEAD TO BEHIND BASE LE.

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

C. LUGO

6.500

AUTOMATIC THERMAL PROTECTOR

GREEN GROUND SCREW

CONDUIT PLUG

1/2-14 NPSM THD

SPLIT IN MTG. RING

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

ECO E29750

F. FLORES B. GAITAN

ST. SW. END

3/4

10.779

LABEL: NAMEPLATE

WARNING LABEL

TOP

.344

1.500 1.500

208-230/460

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

2.9-2.9/1.5

INFORMATION DISCLOSED ON THIS DOCUMENT

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

1725

ASSEMBLED VIEW

.060

8-32 THD

.750u0.062

2.750

REVERSIBLE 8489

NIDEC MOTOR

CORPORATION

V01

1.88

+.000

DIA

.6250

.6245

-.015

.517

.188 SQ. X

1.375 KEYWAY

CUSTOMER PN

756387

SOLIDEDGEV01_NMCA (MAR-2011)
