Page 1
GREEN
GROUND
LEAD
AUTOMATIC THERMAL
10.188
PROTECTOR
5.657
3.624
2 COMB. Q.C. TERM.
1/2-14 N.P.S. THRD.
WARNING LABEL
2.250
2.000
NAME PLATE
STUDS & 3 Q.C.
TERMS.
GREEN GROUND
°
5
4
3
2
1
5
SCREW
TOP
.5000
.4995
.453
.438
3.500
45°
REV.
D
NIDEC MOTOR CORPORATION 13-Oct-17
MODEL REF
S55JXTWB-8060 M20880
SHEET
NUMBER
1 1
ISSUED BY
REV
OF
D
REVISION DATE
13-OCT-17
CHANGE DRAWING TO SHOW THAT THE GROUND WIRE IS ROUTED FROM INSIDE THE BASE
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
2.438 2.438
6.375
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
STANDARD
R. CRUZJ. ALVARADO
4
6
ECO E29752
3.624
CONDUIT
PLUG
2 TERM. STUD NUTS
& 2 TERM. STUD
WASHERS, 1 EACH
PER TERM. STUD
STARTING SW. END
1/3
115/208-230
R. CRUZ
.344
1.500
6.8/3.1-3.4
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
60
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
1725

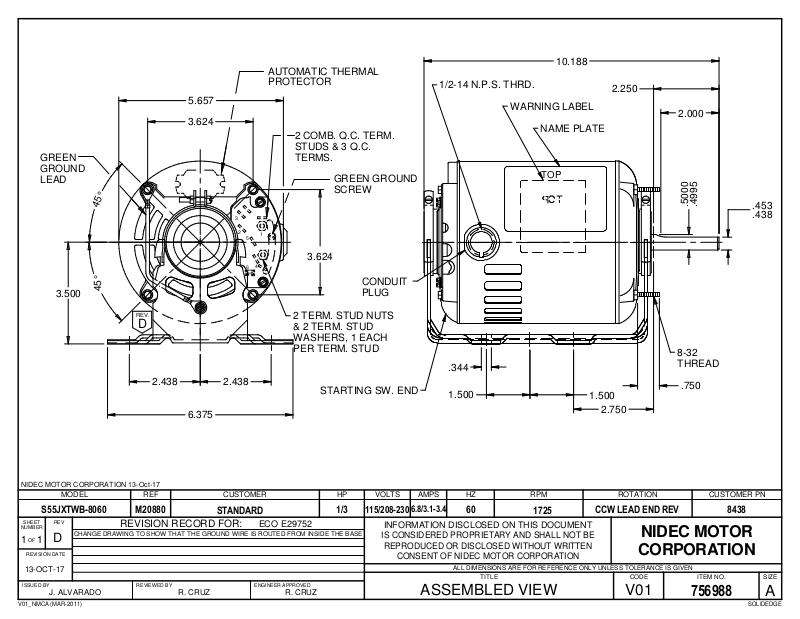

ASSEMBLED VIEW
8-32
THREAD
.750
1.500
2.750
CUSTOMER PN
CCW LEAD END REV 8438
NIDEC MOTOR
CORPORATION
V01
756988
A
SOLIDEDGEV01_NMCA (MAR-2011)
