CONNETIONS
UNGRO UNDED
SIDE OF LINE
BLK
RED
INTERCHANGE RED & BLK LEADS
2
5
TO REVERSE ROTATION
1
115 VOLTS
LINE
4
SUPPLIED DETACHED:
1-5/8 SHAFT ADAPTER
1-SHAFT KEY
REV.
E
1-KIT BAG
1
8
.
5
0
0
.
3
GROUND LEAD
2.13
5.63
2.13
1/2 SIZE CONDUIT
1.38
9.44
1.38
2.50
1.50
0
0
5
.
NIDEC MOTOR CORPORATION 21-Nov-18
MODEL REF
SA55JXSFB-4866 -
SHEET
NUMBER
1 1
REV
OF
E
REVISION DATE
WAS CHANGED THE NOTE OF (FORM INSTAL. INSTR.) TO (KIT BAG).
REVISION RECORD FOR:
21-NOV-18
ISSUED BY
REVIEWED BY ENGINEER APPROVED
G. ISASSI K. MORT
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
STANDARD
ECO E32680
B. GAITAN
1/3 115 6.4
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION

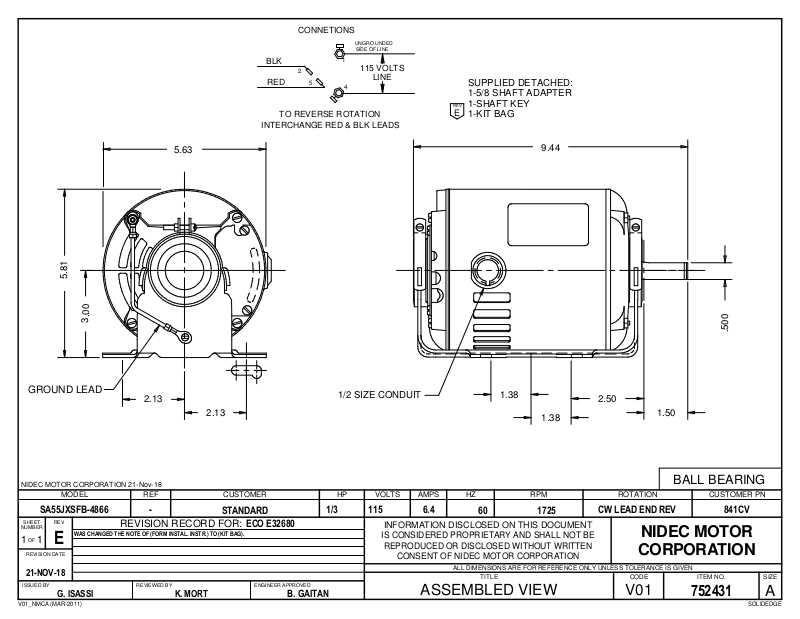

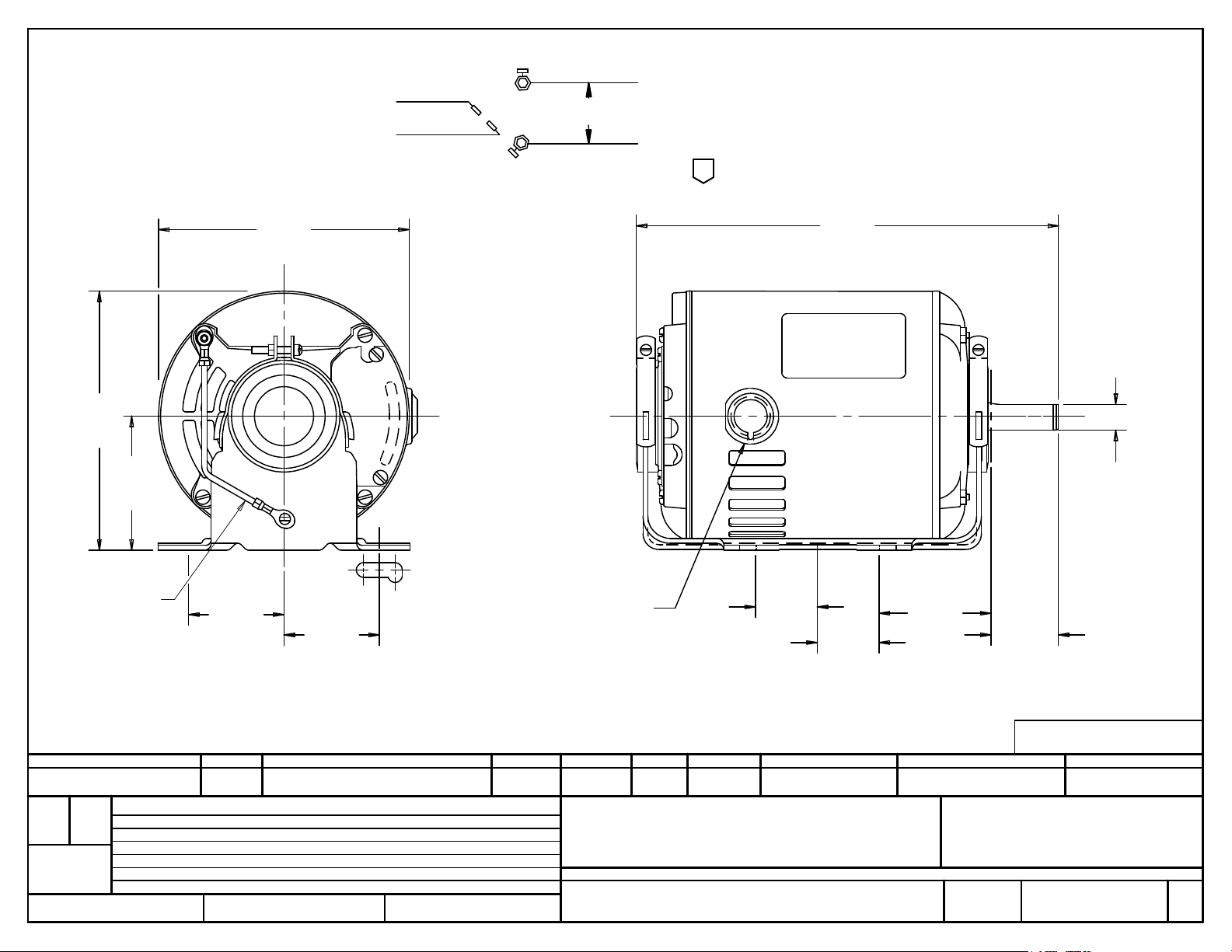

ASSEMBLED VIEW
60 1725
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
CW LEAD END REV 841CV
NIDEC MOTOR
CORPORATION
V01
BALL BEARING
CUSTOMER PN
752431
