Page 1
4.208 MAX.
4.25 RAD.
5.635 MAX. DIA.
2.266
MAX.
8°
.15 DIA.(2) HOLES.
.555
18°
.568
(2)
PLACES
5.00 MAX
TOP
NAMEPLATE
1.00
MIN
2.188
1.875
MIN.
FLAT
.453-.469 REF.
.4995-.5000 DIA.
(2 PLACES)
.031-.047 FLAT
1
2
0
°
T
Y
P
R
O
T
A
T
I
O
N
.343 DIA. (3) HOLES
ON A 7.25 DIA. B.C.
NIDEC MOTOR CORPORATION 22-Oct-12
1.25
.
2
(3) PLACES
MODEL REF
KA55HXKGD-8330
SHEET
REV
NUMBER
E
OF
1
1
REVISION DATE
22-OCT-12
ISSUED BY
B. ANDRADE
ENCLOSED
ENDSHIELD
5
2
2 LEADS,#14,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
(2) BLK=40.000 +3 -0
UPDATED "ENGINEER APPROVED" TO B. GAITAN
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
M. LARGENT B. GAITAN
.50
STRIP
(2) FLATS
90° APART
.545
OPEN
ENDSHIELD
1.015
PROT
4.312
7.688 MAX
K
L
B
TO 4 MFD 370V CAP.
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
STANDARD
C6406-00
1/4 230 1.9
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
REV.
E
50/60 1350/1625
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

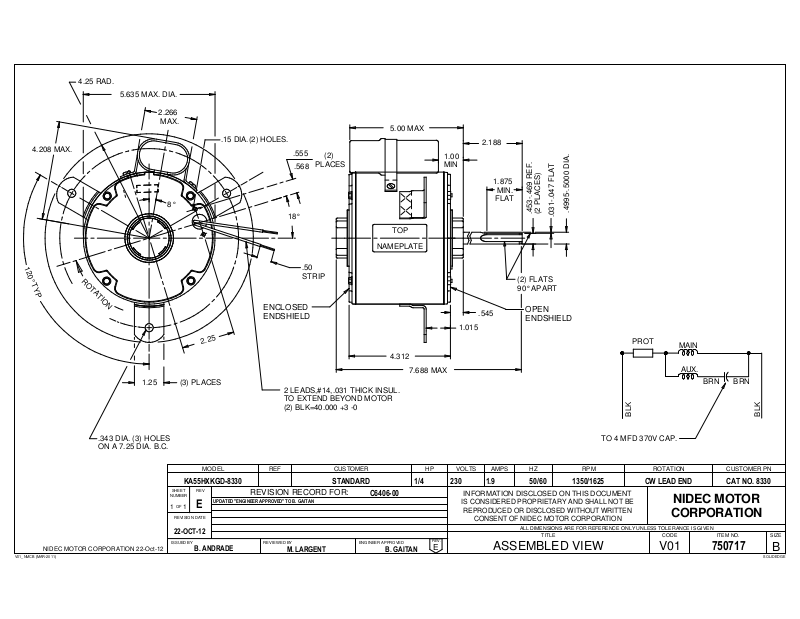

ASSEMBLED VIEW
CW LEAD END CAT NO. 8330
NIDEC MOTOR
CORPORATION
V01
MAIN
AUX.
BRN
750717
BRN
K
L
B
CUSTOMER PN
SOLIDEDGEV01_NMCB (MAR-2011)
B
