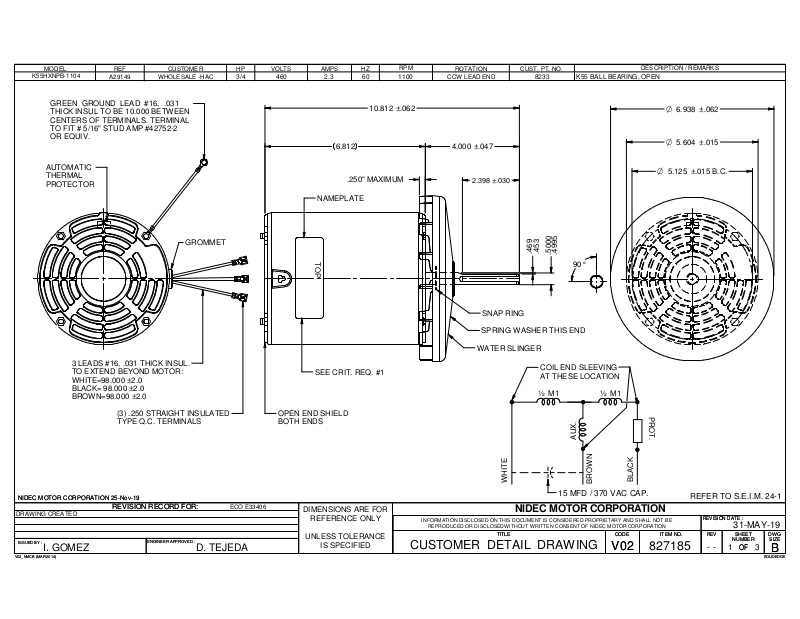

US Motors 8233 Dimensional Sheet
MODEL REF
K55HXNPB-1104
A29149
CUSTOMER
WHOLESALE -HAC
HP ROTATION
3/4
VOLTS
460
AMPS
2.3
HZ
60
RPM
1100
CCW LEAD END
CUST. PT. NO.
8233
K55 BALL BEARING, OPEN
DESCRIPTION / REMARKS
GREEN GROUND LEAD #16, .031
THICK INSUL TO BE 10.000 BETWEEN
CENTERS OF TERMINALS. TERMINAL
TO FIT # 5/16" STUD AMP #42752-2
OR EQUIV.
AUTOMATIC
THERMAL
PROTECTOR
3 LEADS #16, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
WHITE=98.000 ±2.0
BLACK= 98.000 ±2.0
BROWN=98.000 ±2.0
GROMMET
10.812 ±.062
6.812
.250" MAXIMUM
NAMEPLATE
TOP
SEE CRIT. REQ. #1
4.000 ±.047
2.398 ±.030
SNAP RING
SPRING WASHER THIS END
WATER SLINGER
.469
.453
.5000
.4995
90°
COIL END SLEEVING
AT THESE LOCATION
6.938O±.062
5.604O±.015
5.125O±.015 B.C.
½ M1½ M1
(3) .250 STRAIGHT INSULATED
TYPE Q.C. TERMINALS
NIDEC MOTOR CORPORATION 25-Nov-19
NIDEC MOTOR CORPORATION 25-Nov-19
DRAWING CREATED
ISSUED BY :
ISSUED BY :
I. GOMEZ
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO E33406
D. TEJEDA
OPEN END SHIELD
BOTH ENDS
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
.
X
U
A
E
T
I
H
W
N
W
O
R
B
K
C
A
L
B
15 MFD / 370 VAC CAP.
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
PROT.
827185
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
- -
31-MAY-19
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
