MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
K55HXSZZ-8120
STANDARD
1/4
208-230
1.6 60 1110
CCW LEAD END REV
4 LEADS, # 18, .031 THICK INSUL.
(2) YEL & (2) ORG FOR REVERSING
ROTATION TO EXTEND BEYOND
#16 GRN/YEL GRND LEAD TO BE
12.000±.250 BETWEEN CENTER OF
TERMS.TERM. TO FIT #10 SCREW
AUTOMATIC THERMAL
PROTECTOR
SEAM WELD
MOTOR 7.000±1.0
(1) BRN & (1) BRN/WHT LEADS
TO HAVE .250 STRAIGHT TYPE
Q.C. TERMS. WITH INSUL GRIP.
3.812 3.250 ±.047
NAMEPLATE
TOP
7.062 ±.062
CAT. NO.
8230
4 EXTRA NUTS WITH
CAPTIVE STAR
WASHERS
DESCRIPTION / REMARKS
5.625
5.125
4 LEADS, #18, .062 THICK INSULATION
TO EXTEND BEYOND MOTOR
39.000±1.5 (BLK, WHT, BRN & BRN/WHT)
NIDEC MOTOR CORPORATION 24-May-17
NIDEC MOTOR CORPORATION 24-May-17
NEW DRAWING.
ISSUED BY :
ISSUED BY :
B. ANDRADE
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
E28699
H. NAVARRO
.500
SKINNED
.718 ±.031
TOP
(4) 8-18 SCREW SUPPLIED
WITH MOTOR SCREWS TO BE
STARTED IN (4) .120-.124 HOLES
AND RUN IN BUT NOT TIGHT
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
8-32 THR'D
WATER SLINGER
1.630
WARNING LEABEL TO BE
ADJACENT TO REVERSING
LEADS
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

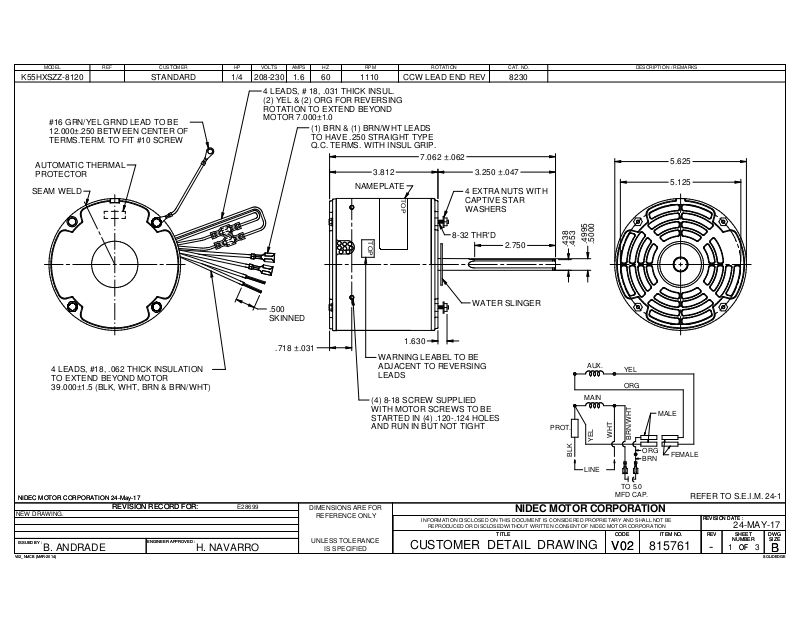

CUSTOMER DETAIL DRAWING
.4995
.5000
.438
PROT.
.453
AUX.
MAIN
T
H
L
E
W
Y
K
L
B
LINE
MFD CAP.
2.750
NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
YEL
ORG
T
H
W
/
N
R
B
TO 5.0
MALE
ORG
BRN
815761
FEMALE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
24-MAY-17
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
