5.625
SHAFT KEY TO BE
TAPED TO MOTOR
GASKET UNDER
CAPACITOR COVER
10.219
5
2
6
.
7
SEAM
WELD
GREEN GRD. SCREW
5 SEPARATED LEADS
PURPLE, BLACK, WHITE, ORANGE AND YELLOW
3" BEYOND MOTOR. COILED AND TUCKED UNDER
TERMINAL COVER FOR SHIPMENT.
NIDEC MOTOR CORPORATION 23-Jan-12
NUMBER
1 1
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXJRE-7259 -
SHEET
REV
OF
B
REVISION DATE
UPDATED BACKGROUND TO NIDEC.
REVISION RECORD FOR:
23-JAN-12
ISSUED BY
E. VICENCIO
REVIEWED BY ENGINEER APPROVED
J.I. SALAZAR J.I. SALAZAR
USEM
C4997-04
AUTOMATIC
THERMAL
PROTECTOR
NAMEPLATE
1/2
2.0
MIN.
TOP
WARNING LABEL
(OPP. SIDE)
1/2-14 NPS THREAD
W/ CONDUIT PLUG
GASKET UNDER TERM. COVER
& IN STRAIN RELIEF HOLES.
115/230
6.0/3.0
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
60
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
850

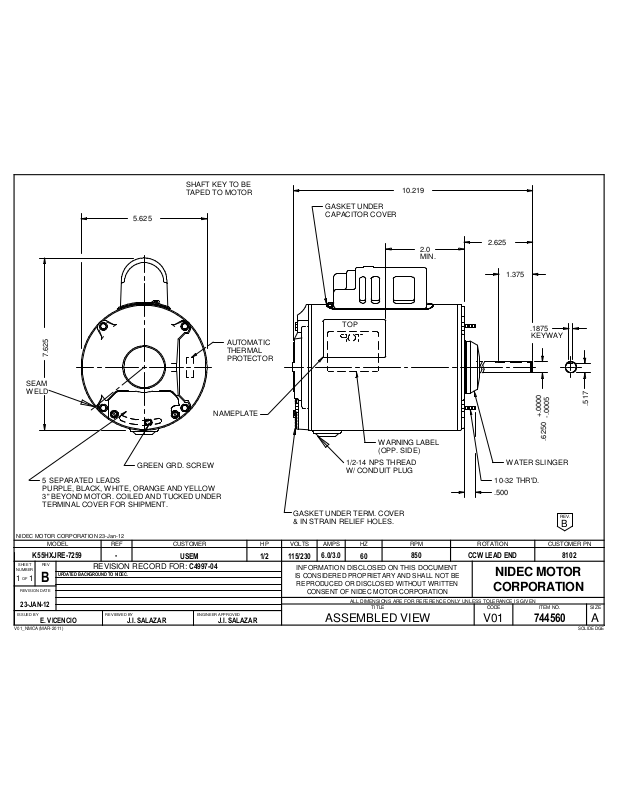

ASSEMBLED VIEW
2.625
1.375
.1875
KEYWAY
0
5
0
0
0
0
0
.
0
.
+
-
0
5
2
6
.
WATER SLINGER
10-32 THR'D.
.500
REV.
B
CCW LEAD END 8102
NIDEC MOTOR
CORPORATION
V01
744560
7
1
5
.
A
SOLIDEDGEV01_NMCA (MAR-2011)
