Page 1
AUTOMATIC THERMAL
PROTECTOR
(2) .250 STRAIGHT Q.C.
TERMS. WITH INSUL. GRIP
ON PURPLE LEADS
11.062
.545
NAMEPLATE
T
O
P
4.455
3.500
MIN.
WATER SLINGER
5
0
0
0
0
0
0
0
.
.
-
+
.578
.562
5
2
6
.
Ø5.625
NIDEC MOTOR CORPORATION 11-Oct-12
NUMBER
1 1
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXTNS-9652 CAT NO. 8068
SHEET
REV
OF
D
REVISION DATE
UPDATED ENGINEER APPROVED TO B. GAITAN
REVISION RECORD FOR:
STANDARD
C6405-00
11-OCT-12
ISSUED BY
R. MORALES
REVIEWED BY ENGINEER APPROVED
M. LARGENT B. GAITAN
(2) RING TERMS. TO
FIT #10 SCREW
(4) LEADS, #16, .062 THICK INSUL.
TO EXTEND BEYOND MOTOR.
ORG=77.000+3-0,BLK=77.000+3-0,
PUR=68.000+3-0,PUR=68.000+3-0
BALL BEARING MOTOR
5.92001
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
REV.
D
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

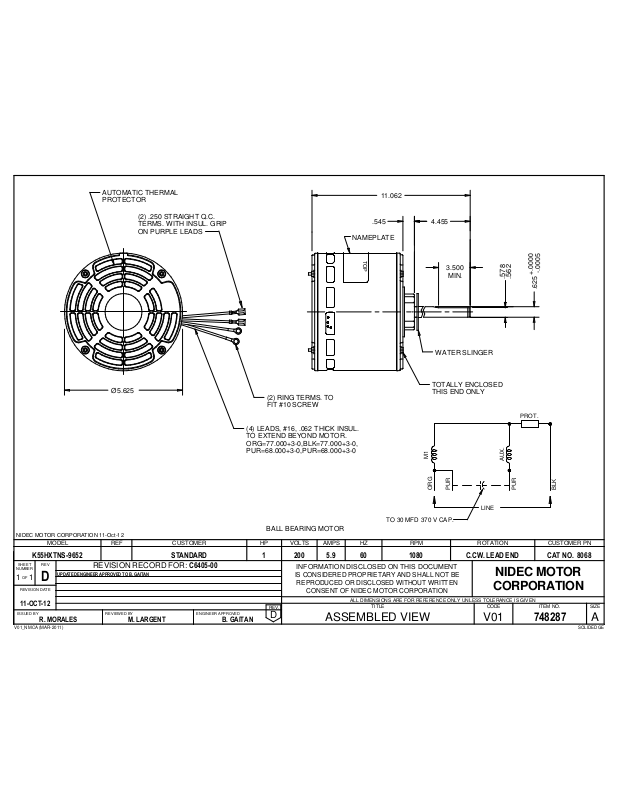

ASSEMBLED VIEW
TO 30 MFD 370 V CAP.
TITLE CODE SIZEITEM NO.
TOTALLY ENCLOSED
THIS END ONLY
1
M
G
R
O
108060
R
U
P
C.CW. LEAD END
PROT.
.
X
U
A
R
U
P
LINE
NIDEC MOTOR
CORPORATION
V01
748287
K
L
B
A
SOLIDEDGEV01_NMCA (MAR-2011)
