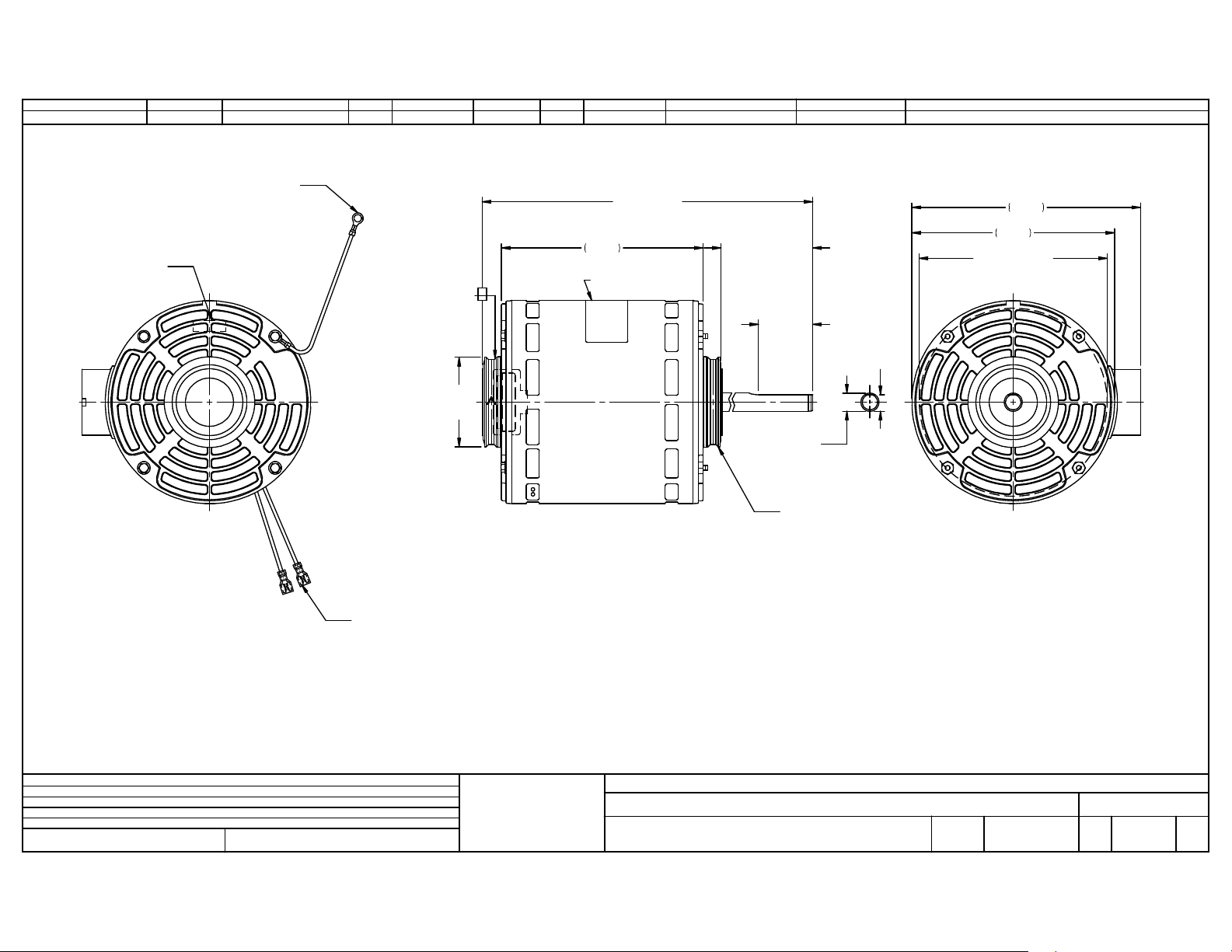

MODEL REF
K55HXTNW-9654
#18 GREEN GROUND LEAD TO BE
10.000±.250 BETWEEN CENTERS
OF TERMS. TERMINAL TO FIT #10
SCREW
AUTOMATIC
THERMAL
PROTECTOR
CUSTOMER
WHOLESALE-HAC
HP
3/4 CAT 8066
VOLTS
AMPS
4.5
HZ
60
RPM
1075/3 SPD
ROTATION
CCW LEAD END208-230
CUSTOMER PT. NO.
8.652 ±.062
5.062
2.500 ±.047
NAMEPLATE
SEE CRITICAL
REQ. #2 & #3
T
O
P
2.200
DESCRIPTION / REMARKS
6.340
5.625
5.125OB.C.
1
2
3
4
5
6
NIDEC MOTOR CORPORATION 27-Sep-18
NIDEC MOTOR CORPORATION 27-Sep-18
NEW DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
2.500
2 PURPLE LEADS #18 .031 THICK INSUL
WITH .250 Q.C. STRAIGHT TERMS TO
EXTEND 18.000+2.000-0.000 BEYOND
MOTOR
ECO: E32250
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
Z. TREVIÑO
IS SPECIFIED
.453
+.0000
.5000
-.0010
HUB RING RETAINER
WELDED TO BEARING CAP
(BOTH ENDS)
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

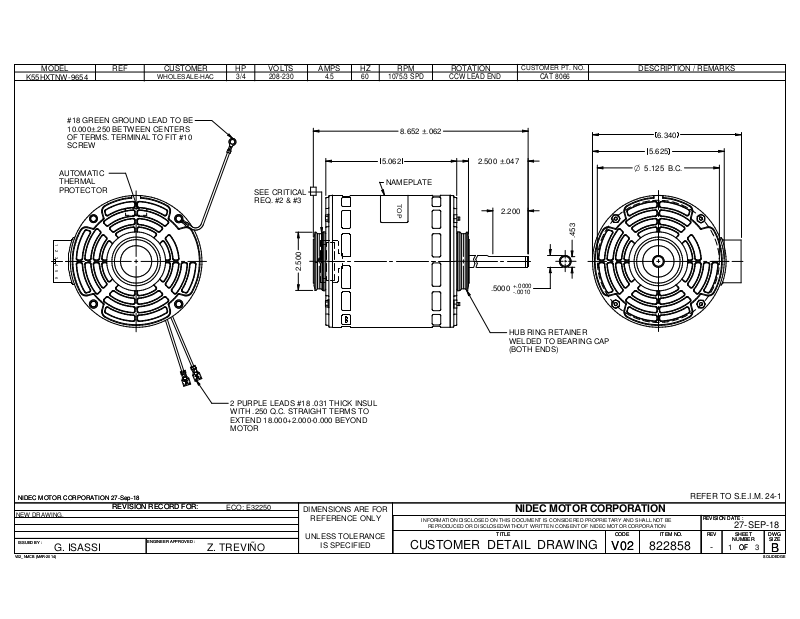

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
822858
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
27-SEP-18
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
