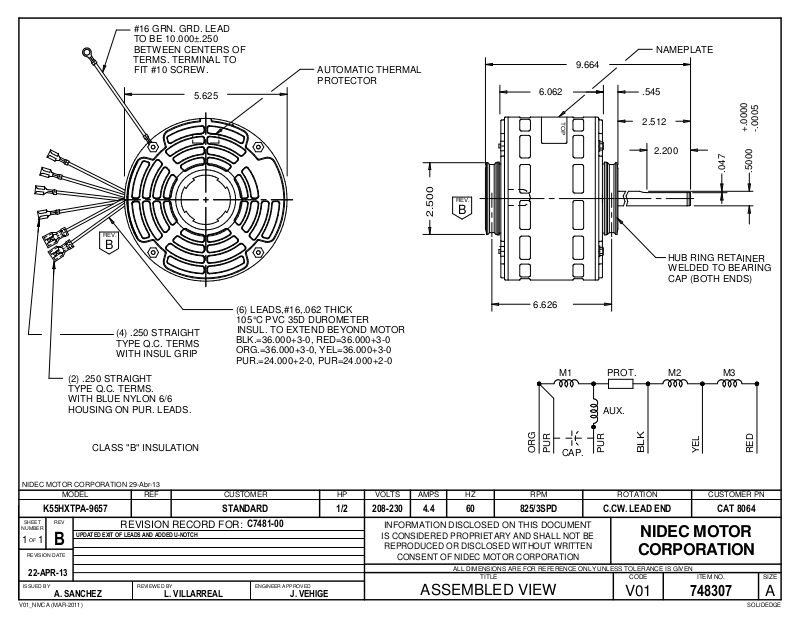

US Motors 8064 Dimensional Sheet

#16 GRN. GRD. LEAD

B

TO BE 10.000±.250
BETWEEN CENTERS OF
TERMS. TERMINAL TO
FIT #10 SCREW.

5.625

AUTOMATIC THERMAL
PROTECTOR

6.062

T
O
P

9.664

NAMEPLATE

.545

2.512

0

5

0

0

0

0

0

0

.

.

-

+

REV.

B

(4) .250 STRAIGHT
TYPE Q.C. TERMS
WITH INSUL GRIP

(2) .250 STRAIGHT
TYPE Q.C. TERMS.
WITH BLUE NYLON 6/6
HOUSING ON PUR. LEADS.

CLASS "B" INSULATION

(6) LEADS,#16,.062 THICK
105°C PVC 35D DUROMETER

INSUL. TO EXTEND BEYOND MOTOR
BLK.=36.000+3-0, RED=36.000+3-0
ORG.=36.000+3-0, YEL=36.000+3-0
PUR.=24.000+2-0, PUR=24.000+2-0

2.200

0
0

REV.

5
.

2

HUB R

ING RET

0

7

0

4

0

0

5

.

.

A

INE

R

WELDED TO BEARING
CAP (BOTH ENDS)

6.626

M1 M2PROT.

M3

AUX.

G

R

R

U
P

O

CAP.

R
U
P

K
L

B

L
E
Y

D
E
R

NIDEC MOTOR CORPORATION 29-Abr-13

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

K55HXTPA-9657

SHEET

NUMBER

1 1

REV

OF

B

REVISION DATE

UPDATED EXIT OF LEADS AND ADDED U-NOTCH

22-APR-13

ISSUED BY

STANDARD 1/2 208-230 4.4 60 825/3SPD C.CW. LEAD END CAT 8064

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

C7481-00

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

J. VEHIGEL. VILLARREALA. SANCHEZ

ASSEMBLED VIEW

NIDEC MOTOR

CORPORATION

V01

748307

A

SOLIDEDGEV01_NMCA (MAR-2011)
