Page 1
AUTOMATIC THERMAL PROTECTOR
11.562
5.625
4 LEADS, #16, .062 THICK INSUL.
T0 EXTEND BEYOND MOTOR
ORG=77.000 +3-0, BLK=77.000 +3-0,
(2) PUR=68.000 +3-0.
NAMEPLATE
6.938
WASHER SLINGER
6.562
.125 MIN 1.172
TOP
SECOND
1/2 MAIN
5.000
3.500
+.0000
.047
.6250
SNAP RING
WATER SLINGER & WASHER SLINGER
POSITIONED .125 +.031-.000 FROM
MOTOR FACE
AUX.
FIRST
1/2 MAIN
-.0005
(2) RING TERMS. FOR #10
SCREW ON ORG & BLK
LEADS
REV.
A
NIDEC MOTOR CORPORATION 26-Jan-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXTNK-9629
SHEET
NUMBER
1 1
ISSUED BY
REV
OF
REVISION DATE
26-JAN-12
UPDATED BACKGROUND TO NIDEC.
A
B. ANDRADE J. I. SALAZAR J. I. SALAZAR
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
STANDARD 1 460 2.5 60 1080 C.CW. LEAD END CAT 8055
C4997-08
(2) .250 STRAIGHT Q.C.
TERMS. WITH INSUL. GRIP
PROT.
ON PURPLE LEADS
BLK
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

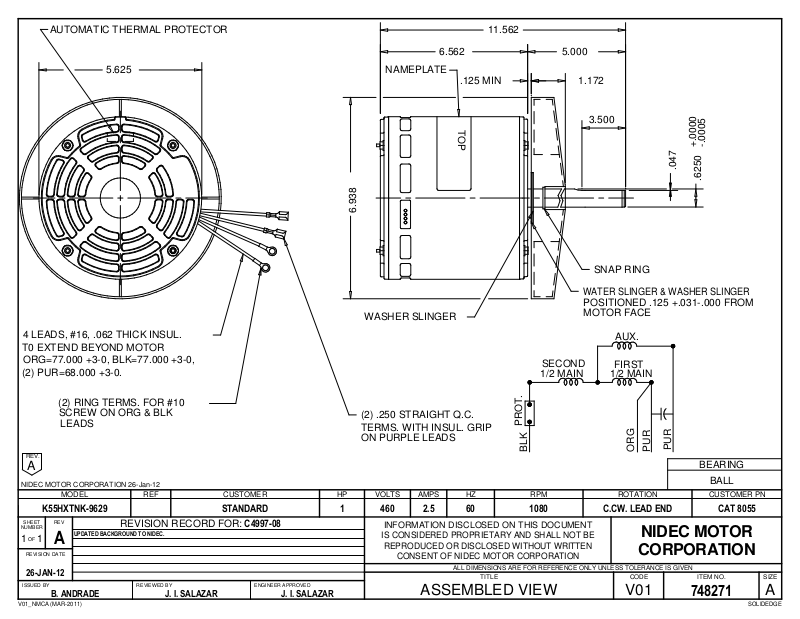

ASSEMBLED VIEW
ORG
PUR
PUR
BEARING
BALL
NIDEC MOTOR
CORPORATION
V01
748271
A
SOLIDEDGEV01_NMCA (MAR-2011)
