US Motors 8052 Dimensional Sheet

B OF

MODEL

K55HXSTB-7251

REF

A-21381

STANDARD

HP ROTATION

1/3

VOLTS

208-230

#16 GREEN GROUND LEAD TO BE

10.000u.250 BETWEEN CENTERS OF TERM. TERM TO FIT #10 SCREW

10.180

9.000

AUTOMATIC THERMAL PROTECTOR

AMPS

1.9

4.812u.062

3.875u.031

RPM

825/3

SPD

7.324u.062

NAMEPLATE

CCW LEAD END

CATALOG NO.

8052

2.512u.047

2.200 ±.030

K55 HUBLESS SELF ALIGN BRG. OPEN

5.604 ±.015

DESCRIPTION / REMARKSCUSTOMER

5.125 ±.015OB.C.

120vTYP.REF

6 LEADS, #16, .031 THICK INSUL 105v PVC 35D DUROMETER TO EXTEND BEYON MOTOR: BLK=36.000+2-0, YEL-36.000+2-0, RED=36.000+2-0, ORG=36.000+2-0, PUR=18.000+2-0, PUR=18.000+2-0.

(2) .250 STRAIGHT TYPE Q.C TERMS. WITH BLUE NYLON

(4) .250 STRAIGHT TYPE Q.C. TERMS. WITH INSUL. GRIP

HOUSING ON PUR.

NOTE:

LEADS ONLY.

1.) INNER BOLT CIRCLE DIA. DIM. IS FOR MANUFACTURING REFERENCE ONLY.

NIDEC MOTOR CORPORATION 13-Sep-19

PAGE 3: NOTE 1 IS EDIT TO: 1.) (3) EYELETS E30256813A000 SHOULD BE INSTALLED

ISSUED BY :

C. RODRIGUEZ

REVISION RECORD FOR:

ENGINEER APPROVED :

CAPACITOR: 15MFD, 370 VAC, CONNECTED BETWEEN (2) .250 STRAIGHT TYPE Q.C. TERMS. WITH BLUE NYLON 6/6 HOUSING ON PURPLE LEADS

ECO: E35264

Z. TREVIÑO

SEE CRIT. REQ. #2

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

T O

.5000

.4995

.453

OIL SLING TO BE PLACED IN OPERATING POSITION AGAINST FACE OF BRG. CAP.

SHIPPED DETACHED (3) EYELETS E30-256813A000

G R O

15 MFD 370 VAC CAPACITOR

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

TITLE

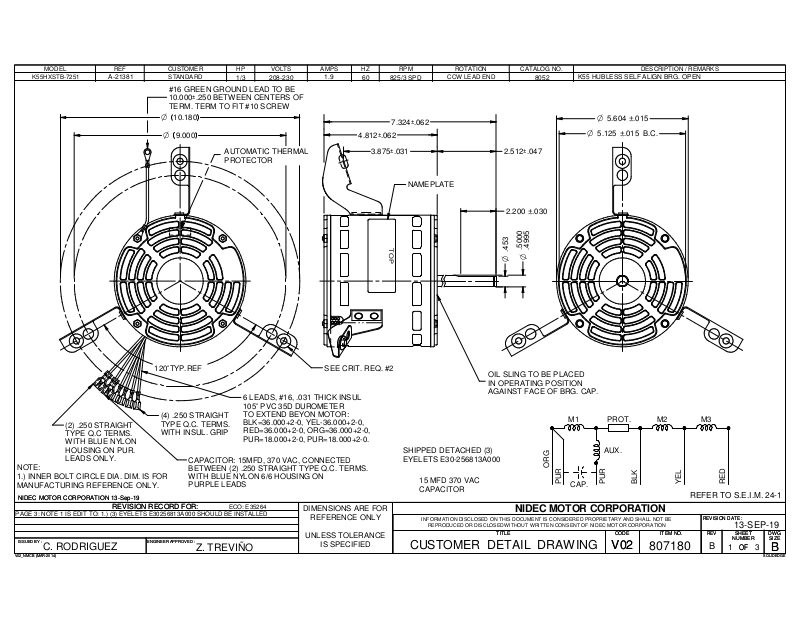

CUSTOMER DETAIL DRAWING

M1 M2PROT.

AUX.

R U P

CAP.

R U P

K L B

CODE ITEM NO.

V02

807180

L E Y

D E R

REFER TO S.E.I.M. 24-1

REVISION DATE :

REV

13-SEP-19

SHEET

NUMBER

1 3

DWG

SIZE

SOLIDEDGEV02_NMCB (MAR-2014)
