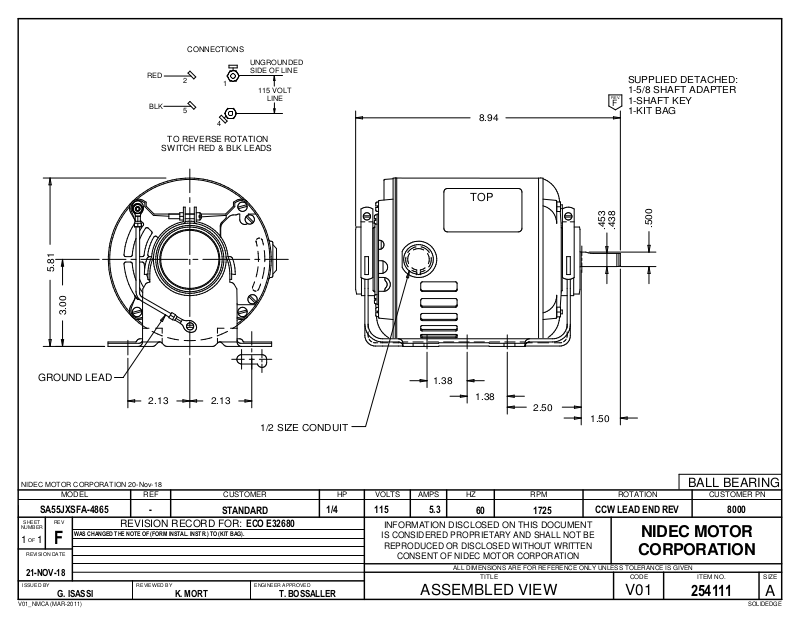

US Motors 8000 Dimensional Sheet
CONNECTIONS
UNGROUNDED
RED
BLK
2
5
4
TO REVERSE ROTATION
SWITCH RED & BLK LEADS
1
SIDE OF LINE
115 VOLT
LINE
8.94
SUPPLIED DETACHED:
1-5/8 SHAFT ADAPTER
REV.
1-SHAFT KEY
F
1-KIT BAG
TOP
8
3
3
5
4
4
.
.
1
8
.
5
0
0
.
3
0
0
5
.
GROUND LEAD
NIDEC MOTOR CORPORATION 20-Nov-18
MODEL REF
SA55JXSFA-4865 -
SHEET
NUMBER
1 1
REV
OF
F
REVISION DATE
WAS CHANGED THE NOTE OF (FORM INSTAL. INSTR.) TO (KIT BAG).
REVISION RECORD FOR:
21-NOV-18
ISSUED BY
REVIEWED BY ENGINEER APPROVED
G. ISASSI K. MORT
1.38
2.132.13
1.38
2.50
1.50
1/2 SIZE CONDUIT
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
STANDARD
ECO E32680
1/4 115 5.3
T. BOSSALLER
60 1725
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
ASSEMBLED VIEW
CCW LEAD END REV 8000
BALL BEARING
CUSTOMER PN
NIDEC MOTOR
CORPORATION
V01
254111
A
SOLIDEDGEV01_NMCA (MAR-2011)
