US Motors 7913P Dimensional Sheet

B OF

B OF

mm

V02 USEM pg 1 Eng lish

VAR

001 P63TYAHR-1330

MODEL

GREEN GROUND SCREW

CUSTOMER

USEM 12.907913P

6.500

C

B

A

------- 1.5

-------

D

-------

HP

VOLTS

200-230/460

A

±.060

SF

1.15

AMPS

4.8/2.4

RPM

CONN VOLTS

HZ

60 1725 230

PROT.CAT. NO.

AUTO

DESCRIPTION / REMARKS

N56HZ, ODP

THERMAL PROTECTOR
(IF REQUIRED SEE CHART)

6.750

+.000

-.062

3.500

2.44

SEAM WELD

NIDEC MOTOR CORPORATION 29-Jun-15

NIDEC MOTOR CORPORATION 29-Jun-15

DELETED NOTE IN PAGE 3 AND 4.

ISSUED BY :

ISSUED BY :

REVISION RECORD FOR:

REVISION RECORD FOR:

F. GARCIA

2.44

ENGINEER APPROVED :

ENGINEER APPROVED :

1/2-14 NPSM THREAD
WITH CONDUIT PLUG

12 LEADS TO EXTEND
BEYOND MOTOR 6.000±1.000
LEADS TO BE NUMBER 1 THRU 9
AND 14 THRU 16 STRIPPED .750

ECO: E23264

S. SCHINZING

WARNING
LABEL

TOP

TOLERANCES ON DIMENSIONS

(UNLESS OTHERWISE SPECIFIED)

INCHES

.XX = ± .010

.XXX = ±.005

ANGLES X°= ±1°

NAMEPLATE

2.310±.031

(0.188 X 1.750)
KEYWAY

2.250

TOP

.771

.8750

.8745

.34

3.000

5.000

2.250

SHAFT KEY
TAPED TO MOTOR

ROTATION - REVERSIBLE
TO REVERSE ROTATION INTERCHANGE ANY TWO LINE LEADS.

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

TITLE

TITLE

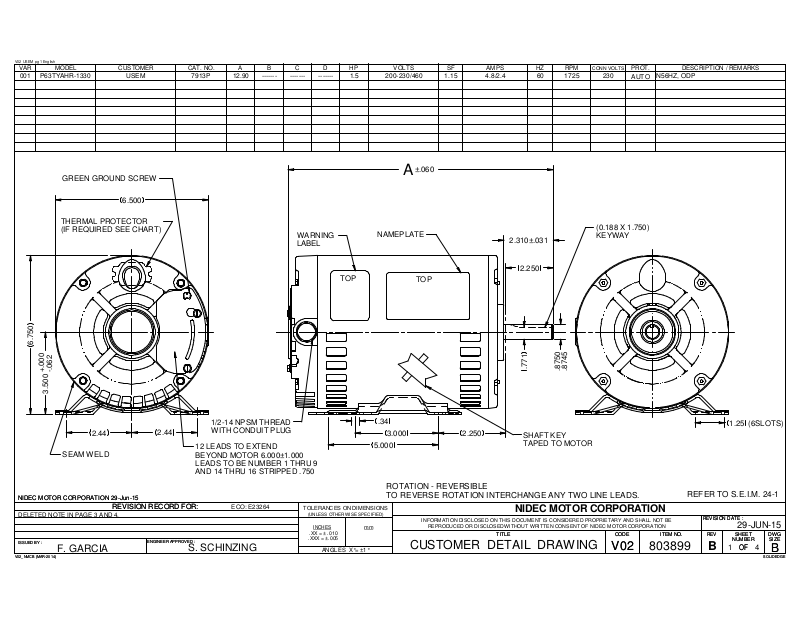

CUSTOMER DETAIL DRAWING

CODE ITEM NO.

CODE ITEM NO.

V02

V02

803899

1.25 (6SLOTS)

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

B

29-JUN-15

SHEET

SHEET

NUMBER

NUMBER

1 4

DWG

DWG

SIZE

SIZE

SOLIDEDGEV02_NMCB (MAR- 2014)

SOLIDEDGEV02_NMCB (MAR- 2014)
