GREEN GROUND LEAD
TO BE 7 INCHES LONG.
CAPACITOR SUPPLIED WITH MOTOR
11.90
NAMEPLATE
3
6
.
5
5
2
.
2
T
O
P
5.00
0
0
5
.
TOTALLY ENCLOSED
6.38
(BOTH ENDS)
NIDEC MOTOR CORPORATION 12-Oct-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXSFE-1005
SHEET
NUMBER
1 1
REV
OF
C
REVISION DATE
UPDATED ENGINEER APPROVED TO B. GAITAN
REVISION RECORD FOR:
12-OCT-12
ISSUED BY
REVIEWED BY ENGINEER APPROVED
R. MORALES
STANDARD
C6404-00
M. LARGENT B. GAITAN
1/2
REV.
C
CAT. NO.
K7475
208-230/460
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
2.8/1.4
CONSENT OF NIDEC MOTOR CORPORATION
60 1075
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

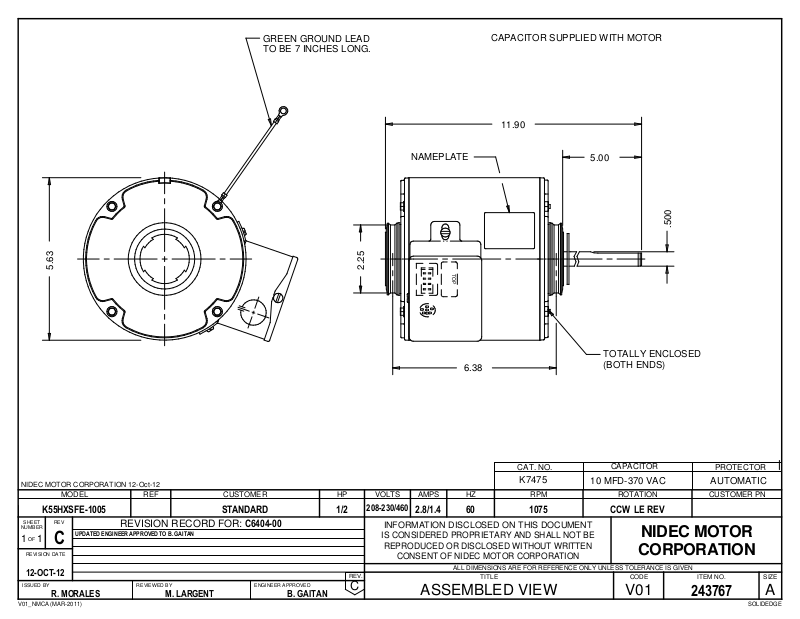

ASSEMBLED VIEW
CAPACITOR
CCW LE REV
NIDEC MOTOR
CORPORATION
V01
243767
PROTECTOR
AUTOMATIC10 MFD-370 VAC
A
SOLIDEDGEV01_NMCA (MAR-2011)
