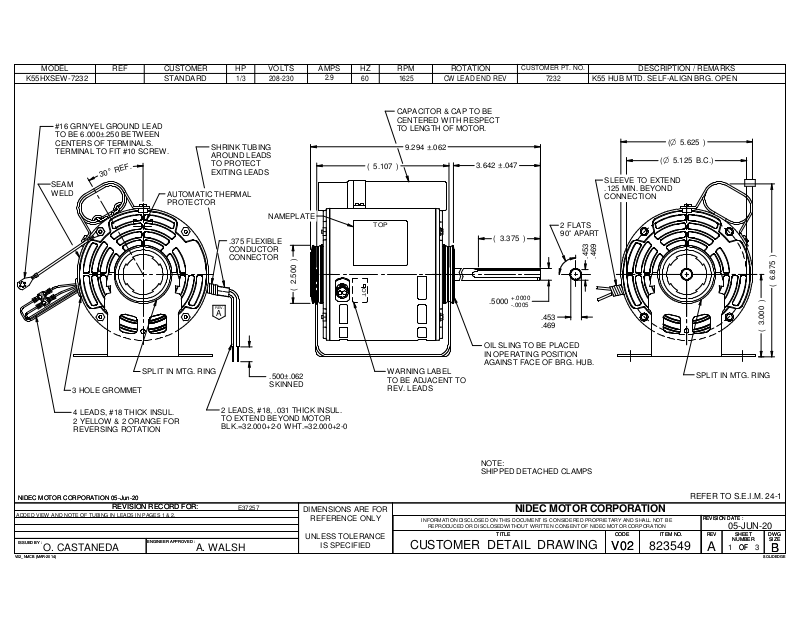

US Motors 7232 Dimensional Sheet

MODEL REF

K55HXSEW-7232

#16 GRN/YEL GROUND LEAD TO BE 6.000±.250 BETWEEN CENTERS OF TERMINALS. TERMINAL TO FIT #10 SCREW.

SEAM WELD

° R

CUSTOMER STANDARD

1/3

VOLTS 208-230

AMPS

2.9

RPM

1625

ROTATION

CW LEAD END REV

CUSTOMER PT. NO.

7232

K55 HUB MTD. SELF-ALIGN BRG. OPEN

DESCRIPTION / REMARKS

CAPACITOR & CAP TO BE CENTERED WITH RESPECT TO LENGTH OF MOTOR.

5.625(

SHRINK TUBING

9.294 ±.062

AROUND LEADS

TO PROTECT EXITING LEADS

5.107( )

3.642 ±.047

5.125(

)

B.C.)

SLEEVE TO EXTEND

AUTOMATIC THERMAL PROTECTOR

.125 MIN. BEYOND CONNECTION

NAMEPLATE

.375 FLEXIBLE CONDUCTOR CONNECTOR

TOP

3.375( )

2 FLATS 90v APART

.453

.469

SPLIT IN MTG. RING

3 HOLE GROMMET

4 LEADS, #18 THICK INSUL. 2 YELLOW & 2 ORANGE FOR REVERSING ROTATION

NIDEC MOTOR CORPORATION 05-Jun-20

ADDED VIEW AND NOTE OF TUBING IN LEADS IN PAGES 1 & 2.

ISSUED BY :

O. CASTANEDA

REVISION RECORD FOR:

ENGINEER APPROVED :

REV.

.500±.062 SKINNED

2 LEADS, #18, .031 THICK INSUL. TO EXTEND BEYOND MOTOR BLK.=32.000+2-0 WHT.=32.000+2-0

E37257

A. WALSH

2.500( )

O T

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

+.0000

.5000

-.0005

.453 .469

OIL SLING TO BE PLACED IN OPERATING POSITION

AGAINST FACE OF BRG. HUB. WARNING LABEL TO BE ADJACENT TO

REV. LEADS

NOTE: SHIPPED DETACHED CLAMPS

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

TITLE

CUSTOMER DETAIL DRAWING

CODE ITEM NO.

V02

823549

3.000( )

SPLIT IN MTG. RING

REFER TO S.E.I.M. 24-1

REVISION DATE :

05-JUN-20

REV

SHEET

NUMBER

1 3

DWG

SIZE

SOLIDEDGEV02_NMCB (MAR-2014)

6.875( )
