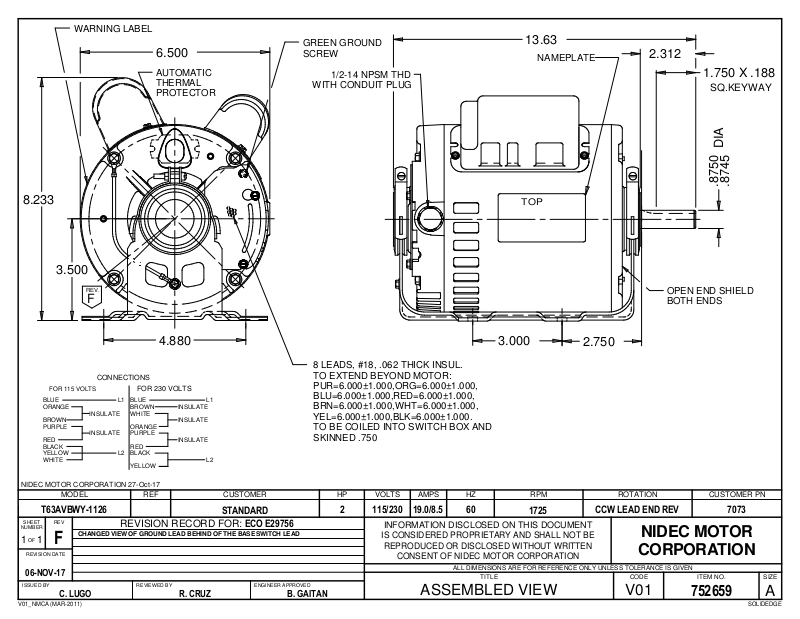

US Motors 7073 Dimensional Sheet

8.233

WARNING LABEL

3.500

6.500

AUTOMATIC
THERMAL
PROTECTOR

GREEN GROUND
SCREW

1/2-14 NPSM THD
WITH CONDUIT PLUG

13.63

NAMEPLATE

TOP

2.312

1.750 X .188

SQ.KEYWAY

DIA

.8750

.8745

REV.

F

CONNECTIONS

FOR 115 VOLTS

BLUE
ORANGE

BROWN
PURPLE

RED
BLACK
YELLOW
WHITE

NIDEC MOTOR CORPORATION 27-Oct-17

INSULATE

INSULATE

MODEL REF

T63AVBWY-1126

SHEET

NUMBER

1 1

REV

OF

F

REVISION DATE

CHANGED VIEW OF GROUND LEAD BEHIND OF THE BASE SWITCH LEAD

06-NOV-17

ISSUED BY

C. LUGO

FOR 230 VOLTS

BLUE

L1 L1

BROWN
WHITE

ORANGE
PURPLE

RED
BLACK

L2

YELLOW

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

4.880

INSULATE

INSULATE

INSULATE

L2

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

ECO E29756

R. CRUZ B. GAITAN

8 LEADS, #18, .062 THICK INSUL.
TO EXTEND BEYOND MOTOR:
PUR=6.000±1.000,ORG=6.000±1.000,
BLU=6.000±1.000,RED=6.000±1.000,
BRN=6.000±1.000,WHT=6.000±1.000,
YEL=6.000±1.000,BLK=6.000±1.000.
TO BE COILED INTO SWITCH BOX AND
SKINNED .750

2 115/230 19.0/8.5

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

60

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

ASSEMBLED VIEW

3.000

1725

OPEN END SHIELD
BOTH ENDS

2.750

CUSTOMER PN

CCW LEAD END REV 7073

NIDEC MOTOR

CORPORATION

V01

752659

A

SOLIDEDGEV01_NMCA (MAR-2011)
