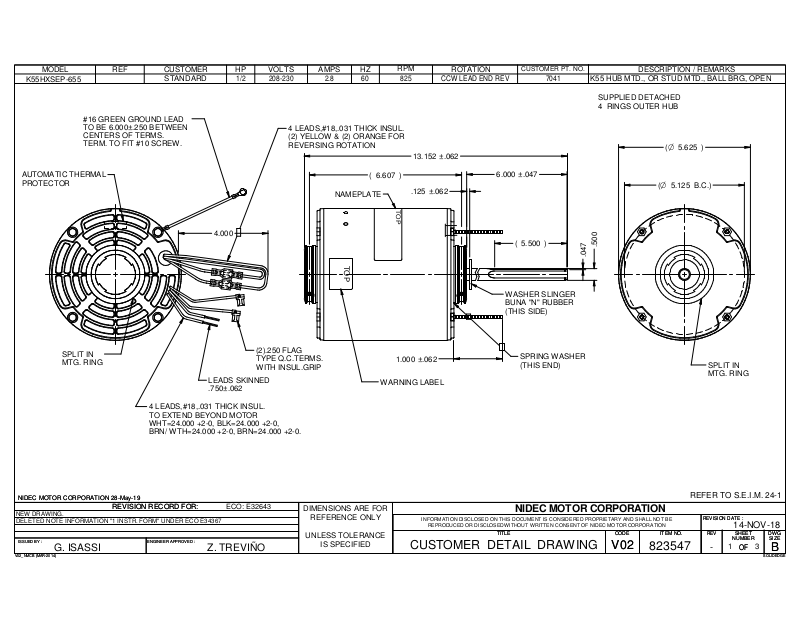

US Motors 7041 Dimensional Sheet

MODEL REF

K55HXSEP-655

#16 GREEN GROUND LEAD
TO BE 6.000±.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW.

CUSTOMER
STANDARD

HP ROTATION

1/2

VOLTS

AMPS DESCRIPTION / REMARKS

2.8

HZ

60

RPM

825

CCW LEAD END REV208-230

4 LEADS,#18,.031 THICK INSUL.
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION

13.152 ±.062

CUSTOMER PT. NO.

7041

K55 HUB MTD., OR STUD MTD., BALL BRG, OPEN

SUPPLIED DETACHED
4 RINGS OUTER HUB

5.625(

O

)

AUTOMATIC THERMAL
PROTECTOR

SPLIT IN
MTG. RING

4.000

(2).250 FLAG
TYPE Q.C.TERMS.
WITH INSUL.GRIP

LEADS SKINNED
.750±.062

4 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
WHT=24.000 +2-0, BLK=24.000 +2-0,
BRN/ WTH=24.000 +2-0, BRN=24.000 +2-0.

NAMEPLATE

T
O

P

6.607( )

.125 ±.062

TOP

1.000 ±.062

WARNING LABEL

6.000 ±.047

5.500( )

WASHER SLINGER
BUNA "N" RUBBER
(THIS SIDE)

SPRING WASHER
(THIS END)

5.125(

O

B.C.)

.500

.047

SPLIT IN
MTG. RING

NIDEC MOTOR CORPORATION 28-May-19

NIDEC MOTOR CORPORATION 28-May-19

NEW DRAWING.
DELETED NOTE INFORMATION "1 INSTR. FORM" UNDER ECO E34367

ISSUED BY :

ISSUED BY :

G. ISASSI

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

Z. TREVIÑO

ECO: E32643

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

NIDEC MOTOR CORPORATION

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

823547

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

-

14-NOV-18

SHEET

SHEET

NUMBER

NUMBER

1 3

OF

OF

DWG

DWG

SIZE

SIZE

B

B
