MODEL
K55HXSEN-651
REF
CUSTOMER
STANDARD
HP
1/3 7040
VOLTS
AMPS
2.7
HZ
60
RPM
825
ROTATION
REVERSIBLE208-230
CUSTOMER PT. NO.
K55 HUB OR STUD MTD. BALL BRG., OPEN
DESCRIPTION / REMARKS
#16 GRN. GRD. LEAD
TO BE 6.000±.250
BETWEEN CENTERS
OF TERMS. TERM
TO FIT #10 SCREW.
AUTOMATIC THERMAL
PROTECTOR
BLK. & WHT. LEADS
SKINNED .750±.062
4 LEADS,#18,.031 THICK INSUL. TO
EXTEND BEYOND MOTOR
BLK=24.000 +2-0, WHT=24.000 +2-0,
BRN=24.000 +2-0, BRN=24.000 +2-0.
4.000
4 LEADS, #18, .031 THICK INSUL
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION.
5.857( )
NAMEPLATE
T
O
P
2.500
WARNING LABEL
NOTCH IN STATOR TO BE ALIGNED
WITH NOTCH ON COVER (BOTH ENDS).
(2).250 FLAG TYPE Q.C.
TERMS. WITH INSUL. GRIP
ON BOTH BRN. LEADS.
12.402 ±.062
TOP
6.000 ±.047
.062
WATER SLINGER
5.500( )
SPRING WASHER
(THIS END)
#8-32 THR'D
1.500 ±.062
SHIPPED DETACHED
4 - HUB RINGS
.469
.453
90°u3
v
.469
.453
5.625(
O
O
)
5.125(
)
NIDEC MOTOR CORPORATION 14-Nov-18
NIDEC MOTOR CORPORATION 14-Nov-18
NEW DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO: E32643
Z. TREVIÑO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

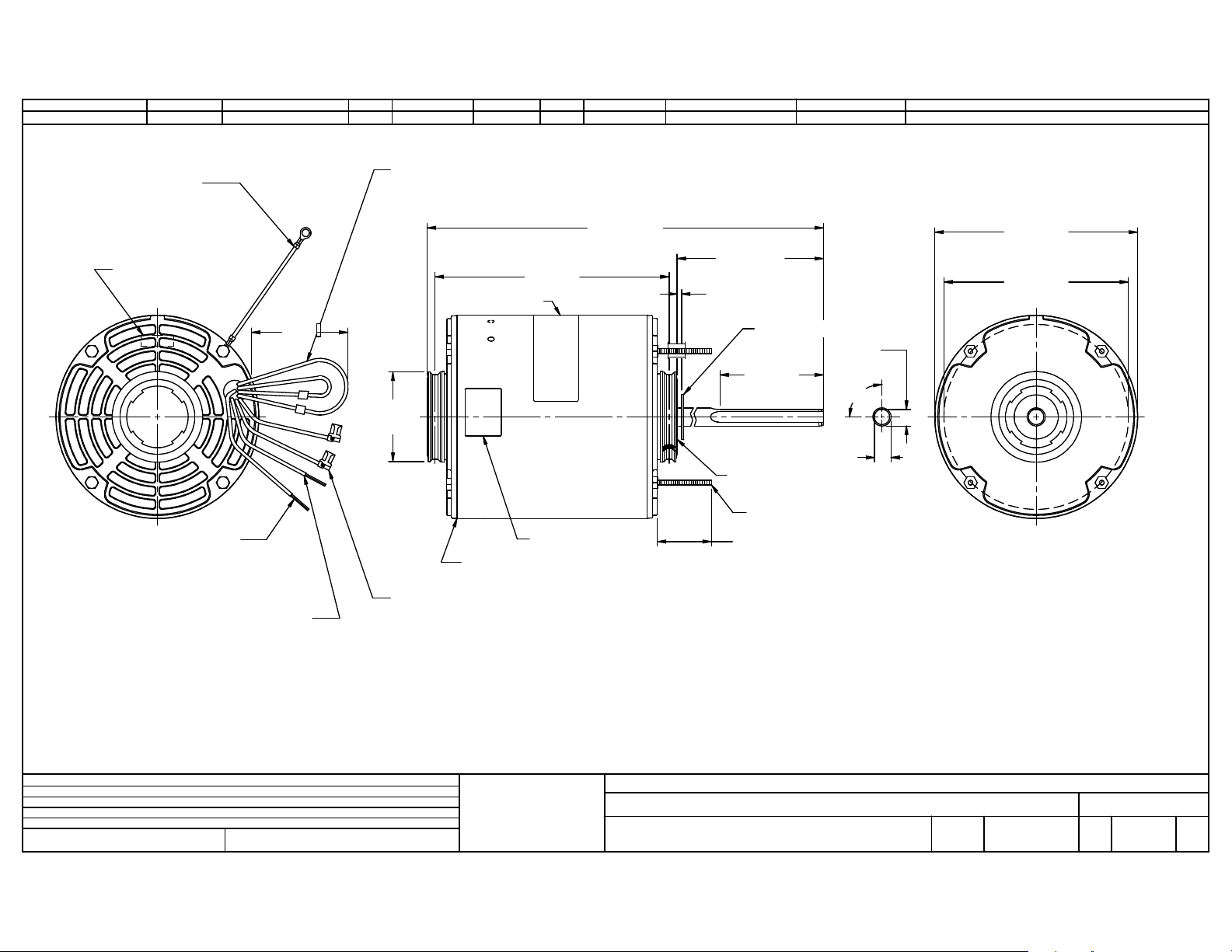

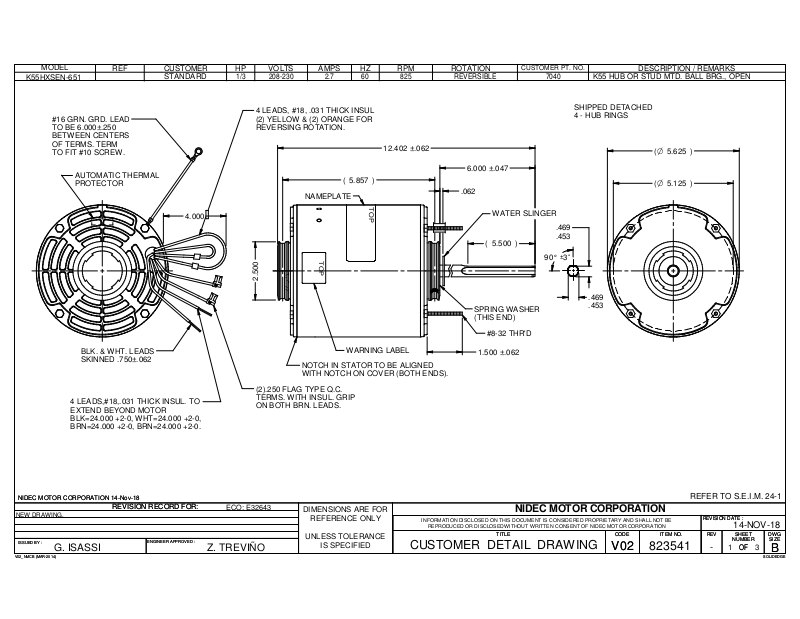

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
823541
REFER TO S.E.I.M. 24-1
