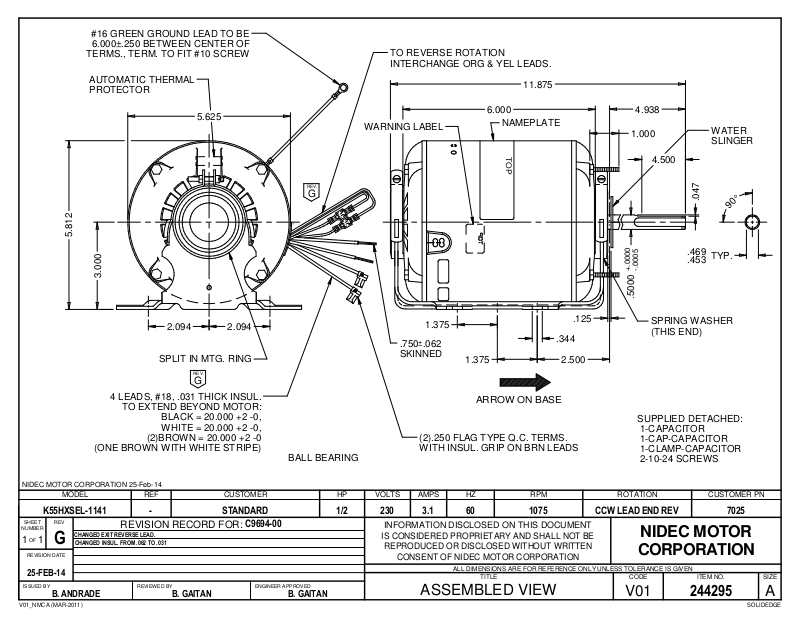

US Motors 7025 Dimensional Sheet
#16 GREEN GROUND LEAD TO BE
G
6.000±.250 BETWEEN CENTER OF
TERMS., TERM. TO FIT #10 SCREW
AUTOMATIC THERMAL
PROTECTOR
TO REVERSE ROTATION
INTERCHANGE ORG & YEL LEADS.
11.875
5.625
5.812
3.000
2.094 2.094
SPLIT IN MTG. RING
REV.
4 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
BLACK = 20.000 +2 -0,
WHITE = 20.000 +2 -0,
(2)BROWN = 20.000 +2 -0
(ONE BROWN WITH WHITE STRIPE)
REV.
G
BALL BEARING
WARNING LABEL
1.375
.750u.062
SKINNED
(2).250 FLAG TYPE Q.C. TERMS.
WITH INSUL. GRIP ON BRN LEADS
6.000
NAMEPLATE
TOP
.125
.344
1.375 2.500
ARROW ON BASE
4.938
1.000
WATER
SLINGER
4.500
.047
.469
TYP.
+.0000
-.0005
.453
.5000
SPRING WASHER
(THIS END)
SUPPLIED DETACHED:
1-CAPACITOR
1-CAP-CAPACITOR
1-CLAMP-CAPACITOR
2-10-24 SCREWS
°
0
9
NIDEC MOTOR CORPORATION 25-Feb-14
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXSEL-1141 -
SHEET
NUMBER
1 1
REV
OF
G
REVISION DATE
CHANGED EXIT REVERSE LEAD.
CHANGED INSUL. FROM .062 TO .031
25-FEB-14
ISSUED BY
B. ANDRADE B. GAITAN B. GAITAN
STANDARD
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
C9694-00
1/2 230 3.1
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ASSEMBLED VIEW
60 1075
CCW LEAD END REV 7025
NIDEC MOTOR
CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
V01
244295
A
SOLIDEDGEV01_NMCA (MAR-2011)
