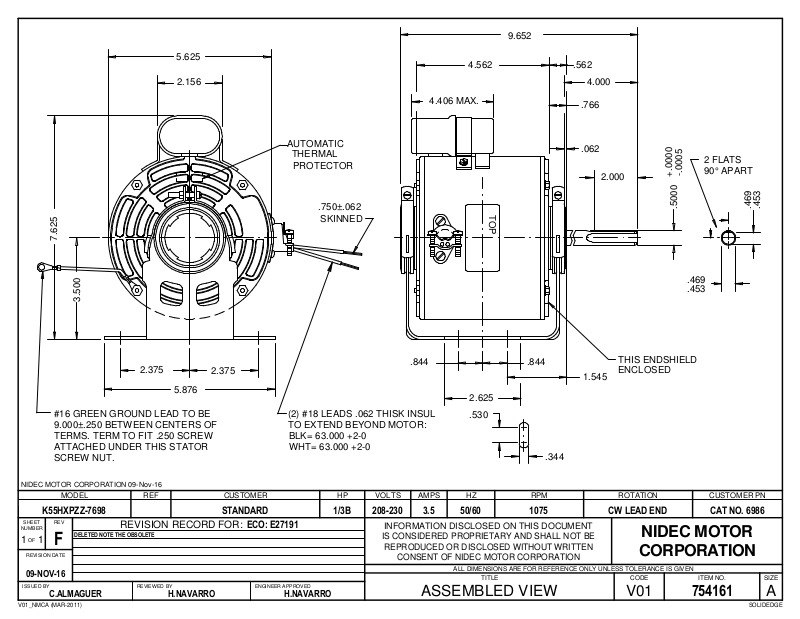

US Motors 6986 Dimensional Sheet

9.652

5.625

2.156

4.406 MAX.

AUTOMATIC

THERMAL

PROTECTOR

.750±.062

SKINNED

7.625

3.500

4.562

TOP

.562

.766

.062

4.000

2.000

2 FLATS
90° APART

-.0005

+.0000

.469

.5000

.469
.453

.453

#16 GREEN GROUND LEAD TO BE

9.000±.250 BETWEEN CENTERS OF
TERMS. TERM TO FIT .250 SCREW
ATTACHED UNDER THIS STATOR
SCREW NUT.

NIDEC MOTOR CORPORATION 09-Nov-16

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

K55HXPZZ-7698

SHEET

NUMBER

1 1

REV

OF

F

REVISION DATE

DELETED NOTE THE OBSOLETE

09-NOV-16

ISSUED BY

C.ALMAGUER H.NAVARRO H.NAVARRO

2.375

5.876

2.375

STANDARD

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

ECO: E27191

.844 .844

(2) #18 LEADS .062 THISK INSUL
TO EXTEND BEYOND MOTOR:

BLK= 63.000 +2-0
WHT= 63.000 +2-0

3.5208-2301/3B

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

THIS ENDSHIELD

1.545

2.625

.530

.344

107550/60

ENCLOSED

CW LEAD END

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

CAT NO. 6986

754161

A

SOLIDEDGEV01_NMCA (MAR-2011)
