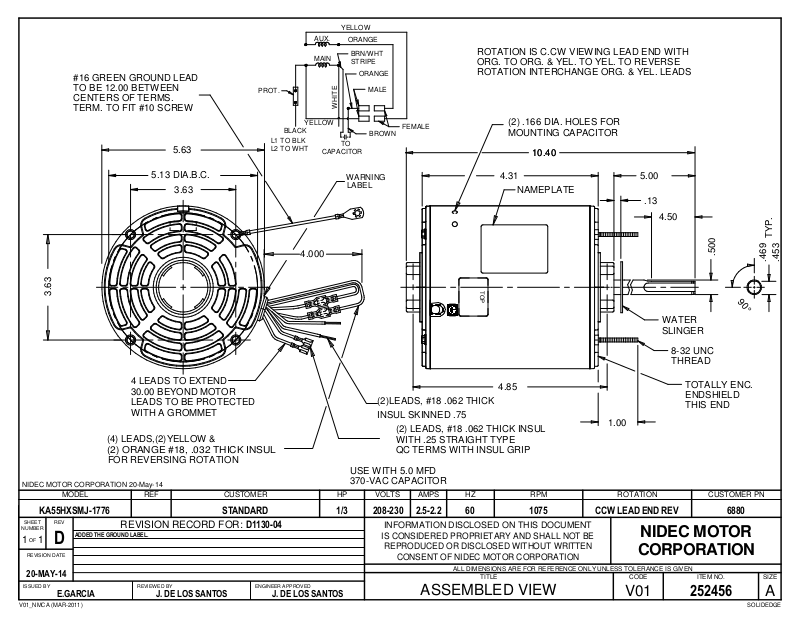

US Motors 6880 Dimensional Sheet

#16 GREEN GROUND LEAD TO BE 12.00 BETWEEN CENTERS OF TERMS. TERM. TO FIT #10 SCREW

5.63

PROT.

L1 TO BLK L2 TO W HT

BLACK

AUX.

MAIN

YELLOW

CAPACITOR

YELLOW

ORANGE

BRN/WHT STRIPE

E T

I H

ORANGE

MALE

BROW N

FEMALE

ROTATION IS C.CW VIEWING LEAD END WITH ORG. TO ORG. & YEL. TO YEL. TO REVERSE ROTATION INTERCHANGE ORG. & YEL. LEADS

(2) .166 DIA. HOLES FOR MOUNTING CAPACITOR

10.40

3 6

. 3

(4) LEADS,(2)YELLOW & (2) ORANGE #18, .032 THICK INSUL

FOR REVERSING ROTATION

NIDEC MOTOR CORPORATION 20-May-14

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

KA55HXSMJ-1776

SHEET

NUMBER

1 1

REV

REVISION DATE

ADDED THE GROUND LABEL.

20-MAY-14

ISSUED BY

E.GARCIA J. DE LOS SANTOS J. DE LOS SANTOS

5.13 DIA.B.C.

3.63

4 LEADS TO EXTEND

30.00 BEYOND MOTOR LEADS TO BE PROTECTED WITH A GROMMET

STANDARD

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

D1130-04

4.000

WARNING LABEL

(2)LEADS, #18 .062 THICK INSUL SKINNED .75

(2) LEADS, #18 .062 THICK INSUL WITH .25 STRAIGHT TYPE QC TERMS WITH INSUL GRIP

USE WITH 5.0 MFD 370-VAC CAPACITOR

1/3 208-230 2.5-2.2

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

4.31

5.00

NAMEPLATE

.13

4.50

TOP

WATER SLINGER

8-32 UNC THREAD

4.85

1.00

1075

CCW LEAD END REV 6880

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

0 0 5

TOTALLY ENC. ENDSHIELD THIS END

252456

. P Y T

SOLIDEDGEV01_NMCA (MAR-2011)
