Page 1
MODEL REF
K55HXSEH-993
AUTOMATIC
THERMAL
PROTECTOR
CUSTOMER
STANDARD
4 LEADS, 2 YELLOW,
2 ORANGE, #18, .031
THICK INSUL
8.000
HP
1/3 6873
VOLTS
AMPS
2.7
HZ
60
RPM
825
ROTATION
CCW LEAD END, REV208-230
11.40 ±.062
5.810
NAMEPLATE
4.500 ±.047
LEAD WIRE
+2.000
-0.000
BUSHING
SLOT #5
TOP
CUSTOMER PT. NO.
4.000
.453
DESCRIPTION / REMARKS
5.630(
O
)
5.125OB.C.
.438
SPLIT IN
MTG. RING
1 RED LEAD #16, .031 THICK
INSUL. WITH RING TERM.
TO FIT #10 SCREW TO
EXTEND 50.000+2.000-0.000
16 GREEN LEAD #16, .031 THICK INSUL
WITH RING TERM. TO FIT #10 SCREW
TO EXTEND 27.000+2.000-0.000
BETWEEN RINGS
NIDEC MOTOR CORPORATION 26-Sep-18
NIDEC MOTOR CORPORATION 26-Sep-18
NEW DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO: E32250
Z. TREVIÑO
2.500
T
O
P
2 BROWN LEADS, #18, .031 THICK INSUL,
WITH 2 .250 STRAIGTH TYPE Q.C. TERM
WITH INSUL GRIP TO EXTEND
29.000+2.000-0.000 BEYOND MOTOR
1 BLUE LEAD #16, .031 THICK INSUL.
WITH .188 STRAIGHT TYPE Q.C. TERM.
WITH INSUL. GRIP TO EXTEND
50.000+2.000-0.000 BEYOND MOTOR
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED

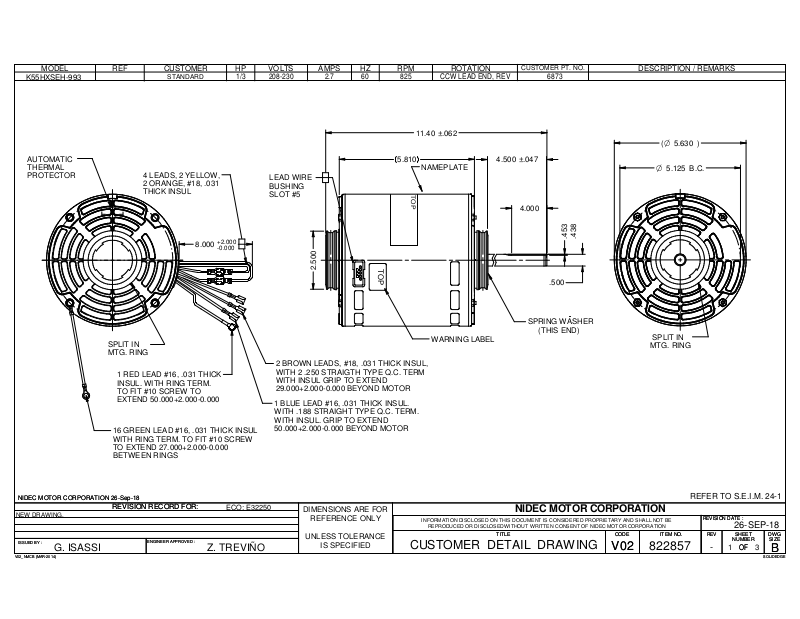

CUSTOMER DETAIL DRAWING
.500
SPRING WASHER
WARNING LABEL
(THIS END)
SPLIT IN
MTG. RING
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
822857
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
26-SEP-18
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
