US Motors 6727 Dimensional Sheet

GREEN GROUND LEAD
TO BE 7 INCHES LONG.

CAPACITOR IS INCLUDED
WITH MOTOR.

11.40

NAMEPLATE

5.00

0
0
5

.

3
6

.
5

5
2

.
2

TOTALLY ENCLOSED
(BOTH ENDS)

5.88

NIDEC MOTOR CORPORATION 19-Nov-12

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

K55XZSEA-1004 -

SHEET

NUMBER

1 1

REV

OF

C

REVISION DATE

UPDATED "ENGINEER APPROVED" TO B. GAITAN

REVISION RECORD FOR:

16-NOV-12

ISSUED BY

REVIEWED BY ENGINEER APPROVED

B. ANDRADE

STANDARD

C6403-02

M. LARGENT B. GAITAN

1/3

REV.

C

208-230/460

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

2.4/1.2

CONSENT OF NIDEC MOTOR CORPORATION

60 1075

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

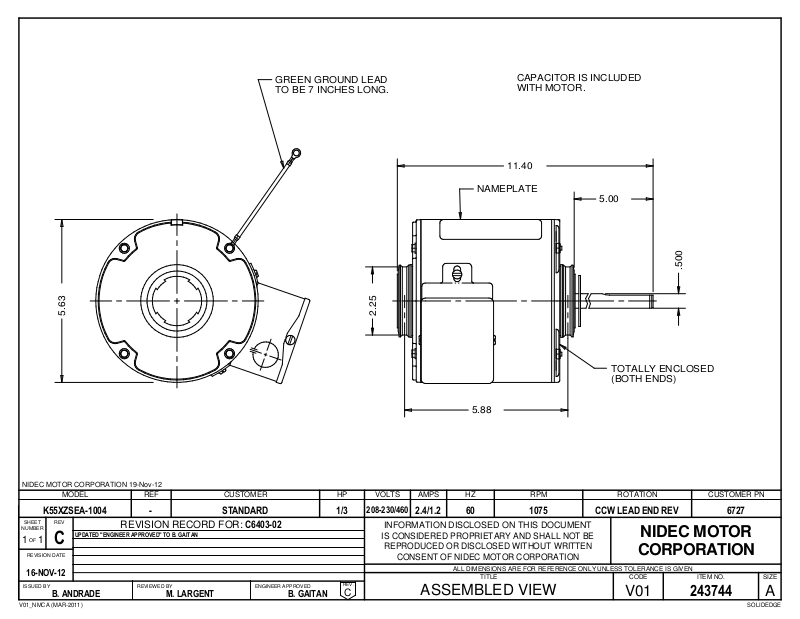

ASSEMBLED VIEW

CCW LEAD END REV 6727

NIDEC MOTOR

CORPORATION

V01

243744

A

SOLIDEDGEV01_NMCA (MAR-2011)
