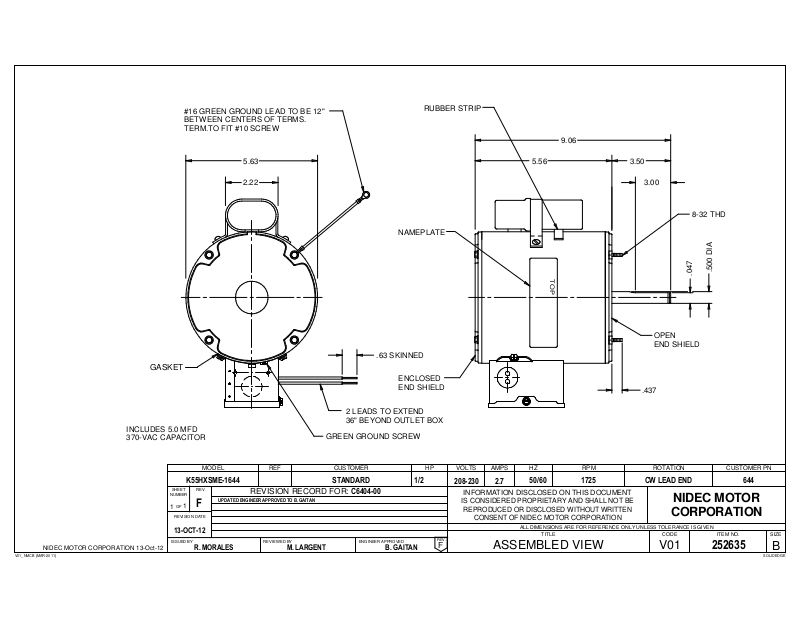

US Motors 644 Dimensional Sheet

#16 GREEN GROUND LEAD TO BE 12"
BETWEEN CENTERS OF TERMS.
TERM.TO FIT #10 SCREW

RUBBER STRIP

9.06

GASKET

INCLUDES 5.0 MFD
370-VAC CAPACITOR

5.63

2.22

NAMEPLATE

.63 SKINNED

ENCLOSED
END SHIELD

2 LEADS TO EXTEND
36" BEYOND OUTLET BOX

GREEN GROUND SCREW

5.56 3.50

TOP

3.00

OPEN
END SHIELD

.437

8-32 THD

A

I
D
0

7

0

4

5

.

0

.

NIDEC MOTOR CORPORATION 13-Oct-12

K55HXSME-1644

SHEET

REV

NUMBER

F

OF

1

1

REVISION DATE

13-OCT-12

ISSUED BY

R. MORALES

MODEL REF

UPDATED ENGINEER APPROVED TO B. GAITAN

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

C6404-00

M. LARGENT B. GAITAN

1/2

208-230

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

REV.

F

2.7

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

50/60 1725

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

CUSTOMER PN

CW LEAD END 644

NIDEC MOTOR

CORPORATION

V01

252635

B

SOLIDEDGEV01_NMCB (MAR-2011)
