US Motors 6317 Dimensional Sheet

12.282

7
1
3

.
8

0
0
5

.
3

NOTE:

1.) SHAFT KEY TAPED TO MOTOR.

32°

REF

REV.

C

SEAM WELD

25°

REF

SPLIT IN
MTG. RING

GREEN GROUND
SCREW

CONDUIT
PLUG

START
SWITCH
END

TO FACE OF ENDSHIELD HUB

TOP

ARROW ON BASE

1.969±.047

.6250
.6245

SPRING WASHER
THIS END

NIDEC MOTOR CORPORATION 27-Oct-17

MODEL REF

T63CXCHK-1327 --

SHEET

REV

NUMBER

OF

1 1

REVISION DATE

CHANGED VIEW OF GROUND LEAD BEHIND OF THE BASE SWITCH LEAD

C

06-NOV-17

ISSUED BY

C. LUGO

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

USEM

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

R. CRUZ J. I. SALAZAR

ECO E29756

100-120/

1

200-240

12.3-10.8/

6.2-5.4

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

60 & 50 1725 & 1425

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

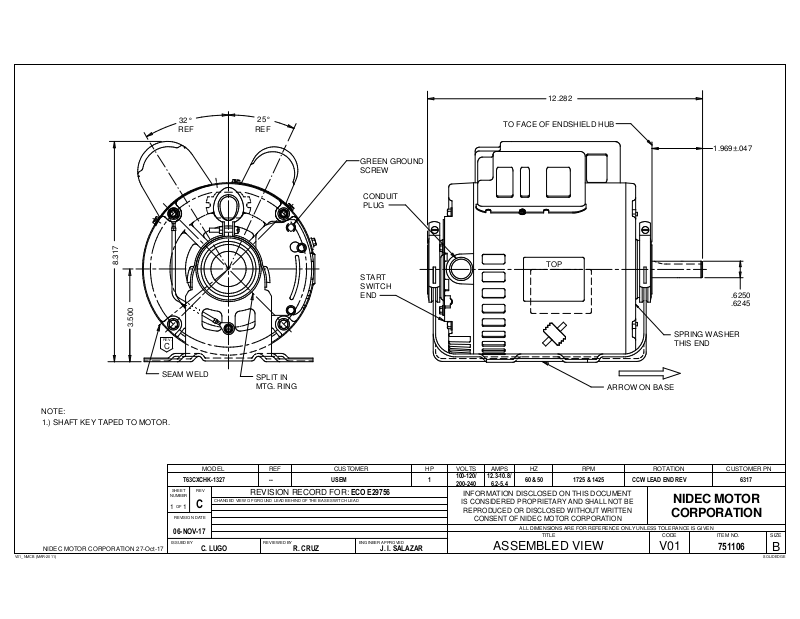

ASSEMBLED VIEW

CCW LEAD END REV 6317

NIDEC MOTOR

CORPORATION

V01

CUSTOMER PN

751106

B
