US Motors 6313 Dimensional Sheet

GREEN

GROUND
SCREW

WARNING LABEL

CONDUIT
PLUG

11.28

SHAFT KEY TAPED TO MOTOR

NAMEPLATE

1.88

.060

3

1

8.292

0
0
5

.
3

REV.

D

2.438

2

SPLIT IN
MTG. RING

2.438

4

6

7

.344

STARTING SWITCH END

1.50

TOP

.188 SQUARE X

1.375 KEYWAY

.625

1.50

6.688

2.750

NIDEC MOTOR CORPORATION 27-Oct-17

MODEL REF

T63CXCHM-1329 --

SHEET

NUMBER

1 1

REV

OF

D

REVISION DATE

CHANGED VIEW OF GROUND LEAD BEHIND OF THE BASE SWITCH LEAD

REVISION RECORD FOR:

06-NOV-17

ISSUED BY

REVIEWED BY ENGINEER APPROVED

C. LUGO

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

USEM

ECO E29756

R. CRUZ J. I. SALAZAR

3/4

110-120/200-240

9.2-8.4/4.6-4.2

60 & 50 1725 & 1425

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

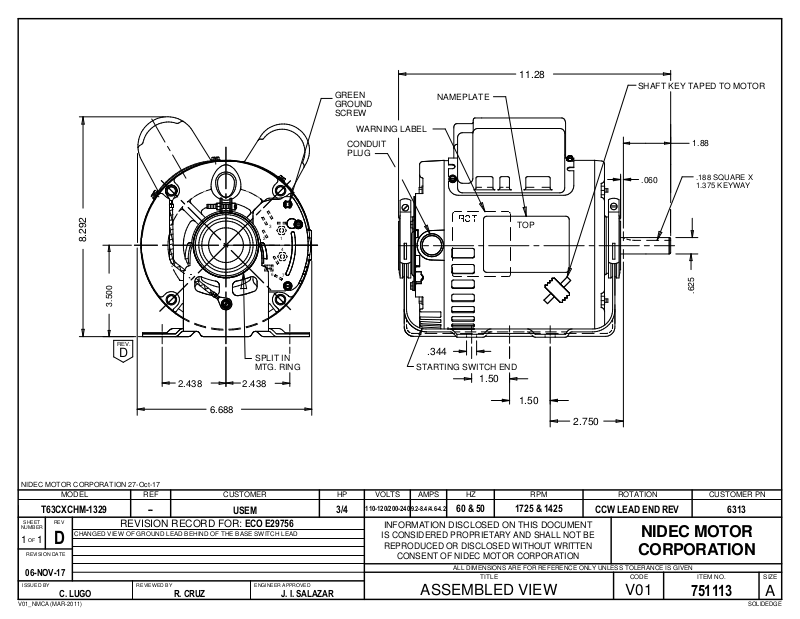

ASSEMBLED VIEW

CUSTOMER PN

CCW LEAD END REV 6313

NIDEC MOTOR

CORPORATION

V01
