CAPACITOR
5°
SEAM WELD
CLAMP TYPE
CONNECTOR
(2) LEADS
STRIPPED .500-.625
NIDEC MOTOR CORPORATION 24-Jan-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXPLF-5179
SHEET
NUMBER
OF
1 1
REVISION DATE
REV
UPDATED BACKGROUND TO NIDEC
A
REVISION RECORD FOR:
2 LEADS, #12, .031
THICK INSUL. TO
EXTEND BEYOND MOTOR:
(2) BLACK 48.000 = +3 -0
STANDARD 1/4 460 0.9 50/60 1625 CW. LEAD END CATALOG 6138
C4997-05
24-JAN-12
ISSUED BY
B. ANDRADE J. I. SALAZAR J. I. SALAZAR
REVIEWED BY ENGINEER APPROVED
AUTOMATIC
THERMAL
PROTECTOR
4.125
5.625
7.862
NAMEPLATE
TOP
BLUE VOLTAGE DOT
NOTE:
MOTOR TO BE MOUNTED IN
A HORIZONTAL POSITION ONLY.
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

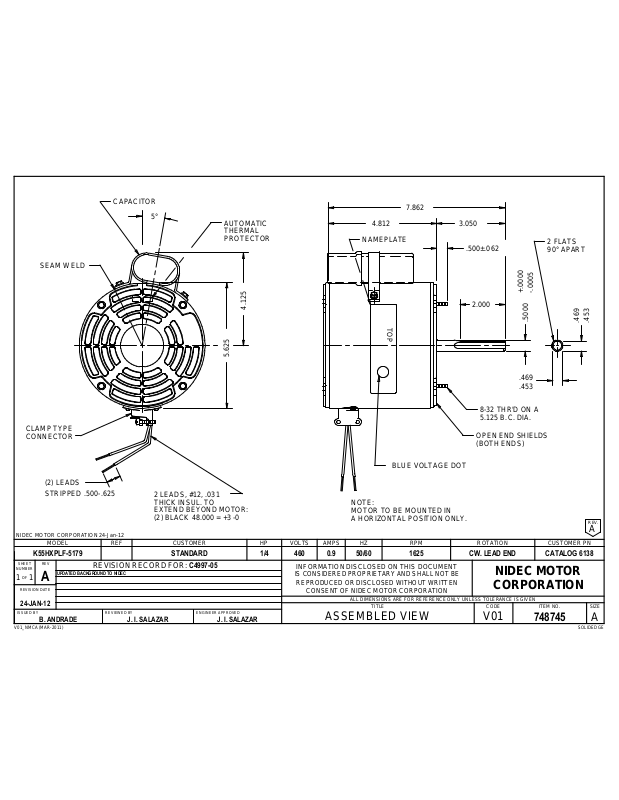

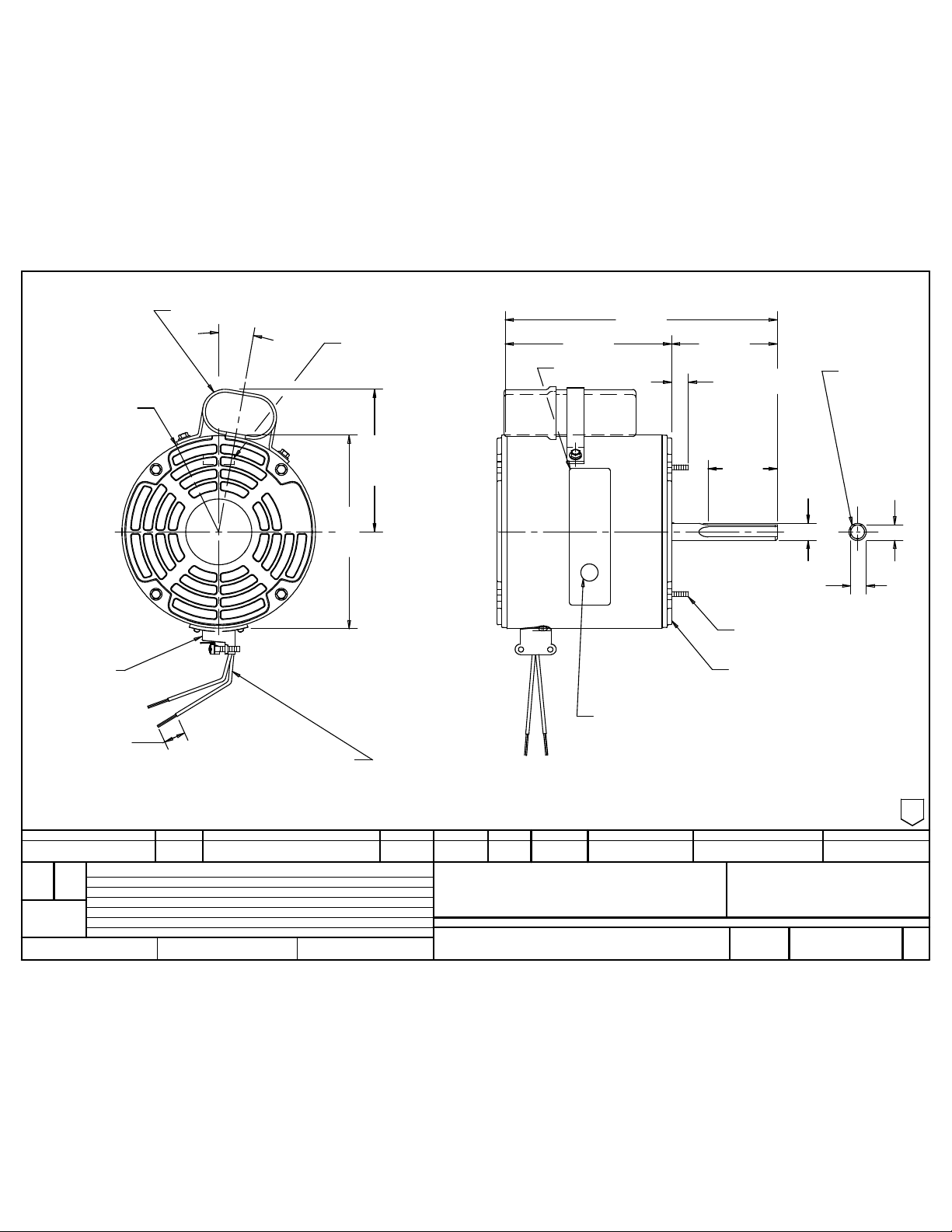

ASSEMBLED VIEW
3.0504.812
.500±.062
2.000
8-32 THR'D ON A
5.125 B.C. DIA.
OPEN END SHIELDS
(BOTH ENDS)
NIDEC MOTOR
CORPORA T ION
V01
+.0000
.5000
.469
.453
2 FLATS
90° APART
-.0005
748745
.469
.453
REV.
A
A
