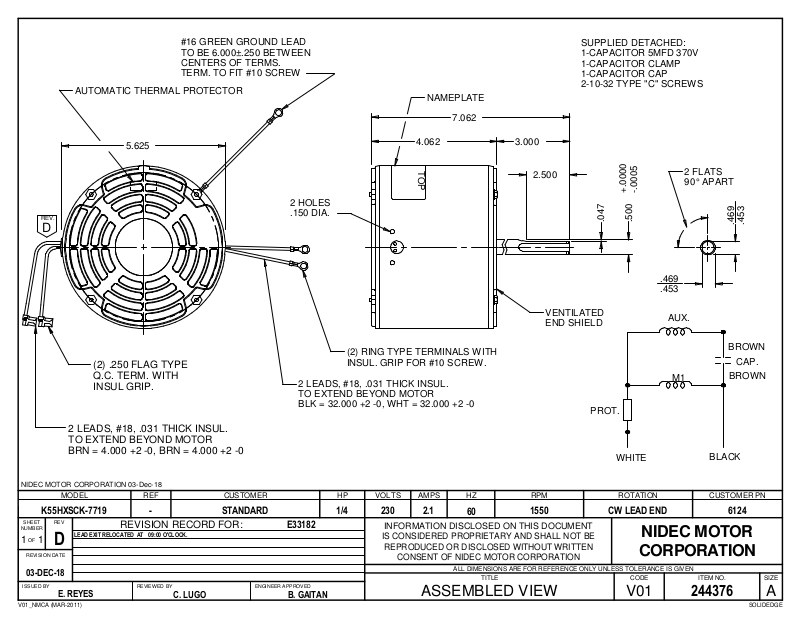

US Motors 6124 Dimensional Sheet

#16 GREEN GROUND LEAD
TO BE 6.000±.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW

AUTOMATIC THERMAL PROTECTOR

SUPPLIED DETACHED:
1-CAPACITOR 5MFD 370V
1-CAPACITOR CLAMP
1-CAPACITOR CAP
2-10-32 TYPE "C" SCREWS

NAMEPLATE

7.062

5.625

REV.

D

(2) .250 FLAG TYPE
Q.C. TERM. WITH
INSUL GRIP.

2 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR
BRN = 4.000 +2 -0, BRN = 4.000 +2 -0

T
O

P

2 HOLES
.150 DIA.

(2) RING TYPE TERMINALS WITH
INSUL. GRIP FOR #10 SCREW.

2 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR
BLK = 32.000 +2 -0, WHT = 32.000 +2 -0

3.0004.062

2.500

VENTILATED
END SHIELD

PROT.

7
4
0

.

WHITE

0

5

0

0

0

0

0

0

.

.

-

+

0
0
5

.

.469
.453

AUX.

M1

2 FLATS
90° APART

BLACK

9

3

6

5

4

4

.

.

BROWN

CAP.

BROWN

NIDEC MOTOR CORPORATION 03-Dec-18

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

K55HXSCK-7719 -

SHEET

NUMBER

1 1

REV

OF

D

REVISION DATE

LEAD EXIT RELOCATED AT 09:00 O'CLOCK.

03-DEC-18

ISSUED BY

E. REYES

STANDARD

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

E33182

C. LUGO B. GAITAN

1/4 230 2.1

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

60

1550

CW LEAD END 6124

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

244376

A
