VAR
001 S55KXTGK-7806
MODEL
2 CONDUCTOR SO 18 GA. RUBBER CORD
TO EXTEND BEYOND MOTOR AS SHOWN
7.500
5.813
6.750 ±.015
CUSTOMER
STANDARD
5866
A
7.818
B
5.843
C SF
--
HP
D
1/7
--
VOLTS
115
--
AMPS
2.6
HZ
60
RPM
3450
CONN VOLTS
--
PROT.CUSTOMER PN.
MANUAL
DESCRIPTION / REMARKS
--
FACE TO BE SQUARE WITH RESPECT TO
0
0
0
.
1
u
0
0
.
1
2
6
.
2
6
0
.
±
5
2
0
0
0
.
5
REV.
B
0
5
2
.
±
NAMEPLATE
SHAFT WITHIN .008 T.I.R.
MAX ECCENTRICITY OF RABBET FIT WITH
RESPECT TO SHAFT TO BE .008 T.I.R.
1.593u.030
2
5
°
±
5
°
TOP
+.000
-.005
5.500
+.0000
-.0005
.453
.438
.5000
.344 DIA.
5.625
NIDEC MOTOR CORPORATION 14-Nov-18
NIDEC MOTOR CORPORATION 14-Nov-18
CHANGE CORD DIMENSION FROM 5.500 TO 5.000
ISSUED BY :
ISSUED BY :
A.GARCIA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO-E32851
L.BACHMAN
MANUAL RESET
THERMAL PROTECTOR
u.060
B
u.060
A
ROTACION: CCW DRIVE-END
TOLERANCES ON DIMENSIONS
(UNLESS OTHERWISE SPECIFIED)
INCHES
.XX = ± .010
.XXX = ±.005
ANGLES X°= ±1°
mm
1.975 ±.047
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

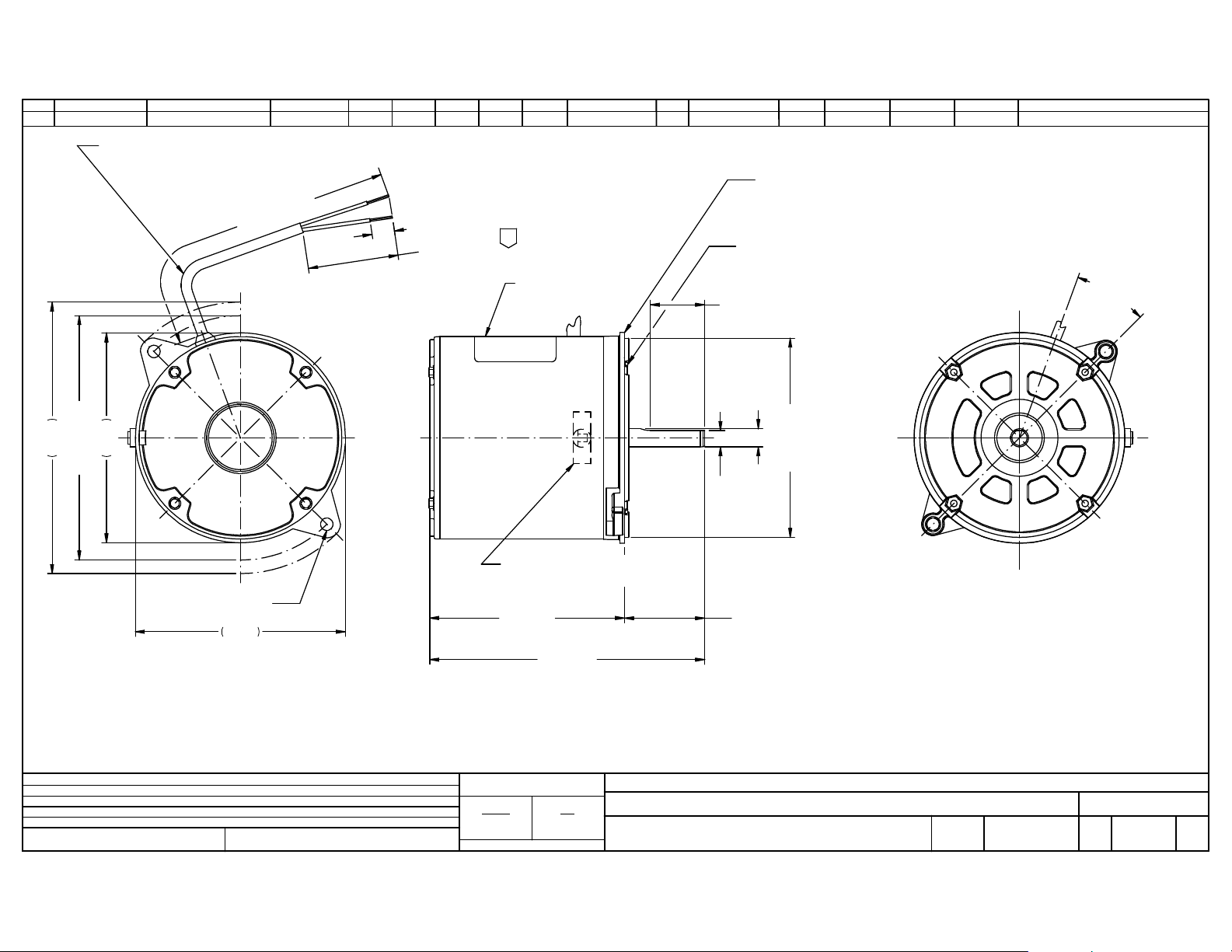

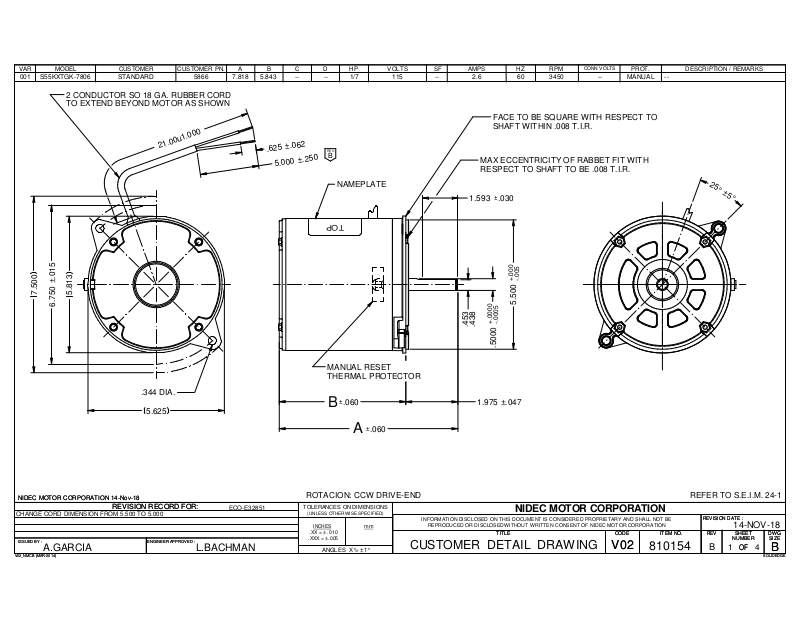

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
810154
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
B
14-NOV-18
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 4
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
