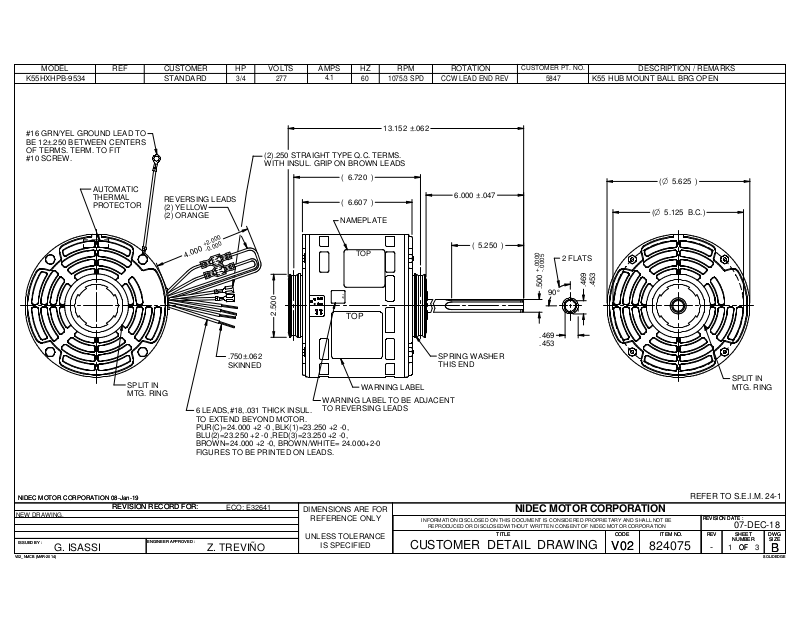

US Motors 5847 Dimensional Sheet

MODEL REF

K55HXHPB-9534

CUSTOMER
STANDARD

HP

3/4

VOLTS

277

AMPS

4.1

HZ

60

RPM

1075/3 SPD

ROTATION

CCW LEAD END REV

CUSTOMER PT. NO.

5847

K55 HUB MOUNT BALL BRG OPEN

DESCRIPTION / REMARKS

#16 GRN/YEL GROUND LEAD TO
BE 12±.250 BETWEEN CENTERS
OF TERMS. TERM. TO FIT
#10 SCREW.

AUTOMATIC
THERMAL
PROTECTOR

SPLIT IN
MTG. RING

REVERSING LEADS
(2) YELLOW
(2) ORANGE

0

0

0

.

2

+

0

0

0

.

0

-

0

0

0

.

4

.750±.062
SKINNED

6 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR.
PUR(C)=24.000 +2 -0 ,BLK(1)=23.250 +2 -0,
BLU(2)=23.250 +2 -0 ,RED(3)=23.250 +2 -0,
BROWN=24.000 +2 -0, BROWN/WHITE= 24.000+2-0
FIGURES TO BE PRINTED ON LEADS.

13.152 ±.062

(2).250 STRAIGHT TYPE Q.C. TERMS.
WITH INSUL. GRIP ON BROWN LEADS

6.720( )

6.607( )

NAMEPLATE

TOP

T
O
P

2.500

TOP

WARNING LABEL

WARNING LABEL TO BE ADJACENT
TO REVERSING LEADS

6.000 ±.047

5.250( )

SPRING WASHER
THIS END

+.0000

-.0005

.500

.469
.453

90°

2 FLATS

5.625(

O

5.125(

O

.469

.453

)

B.C.)

SPLIT IN
MTG. RING

NIDEC MOTOR CORPORATION 08-Jan-19

NIDEC MOTOR CORPORATION 08-Jan-19

NEW DRAWING.

ISSUED BY :

ISSUED BY :

G. ISASSI

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

ECO: E32641

Z. TREVIÑO

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

NIDEC MOTOR CORPORATION

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

824075

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

-

07-DEC-18

SHEET

SHEET

NUMBER

NUMBER

1 3

OF

OF

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)
