Page 1
MODEL REF
K55HXKDJ-9452
AUTOMATIC THERMAL
PROTECTOR
CUSTOMER
STANDARD
(7) .250 FLAG TERMINALS
0
0
0
0
0
.
0
2
.
+
0
-
0
0
0
.
4
5845
10° REF.
HP VOLTS AMPS HZ RPM
3/4
115
10.6
60
WARNING LABEL
TO BE ADJACENT
TO REVERSING
LEADS.
2.255
WARNING LABEL
OPPOSITE SIDE
NAMEPLATE
ROTATIONCAT NO.
1075/4SPD CCW LE REV.
12.650 ±.062
5.560
TOP
1.500 ±.030
6.545 ±.047
6.000 ±.047
5.250
±.030
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB
DESCRIPTION / REMARKS
K55 HUB, S/A BRG, OPEN
NOTE:
-KIT - 2 1/2" RING CONVERSION
SHIPPED IN CARTON.
55°
+.0000
-.0005
.5000
.047
35°
5.125O±.015 B.C.
7 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
YEL=36.000±1.500,BLK=36.000±1.500,
BLU=36.000±1.500,WHT=36.000±1.500,
RED=36.000±1.500 (2)BROWN=36.000±1.500
NIDEC MOTOR CORPORATION 20-Feb-19
NIDEC MOTOR CORPORATION 20-Feb-19
REVISION RECORD FOR:
NEW DRAWING CREATED.
ISSUED BY :
ISSUED BY :
REVISION RECORD FOR:
I. GUTIERREZ
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO E32251
D. TEJEDA
#16 GRN/YEL GROUND LEAD TO BE
12.000±.250 BETWEEN CENTERS
OF TERMS. TERM. TO FIT #10 SCREW
CONNECTION SHOWN IS
FOR C.CW. LE. ROTATION
TO REVERSE ROTATION,
INTERCHANGE ORANGE
AND PURPLE LEADS.
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
FEMALE
M1
PROT
M2
AUX.
R
U
P
MALE
R
U
P
K
C
A
L
B
15 MFD
370V
N
R
B
ORG
N
R
B
T
H
W
G
R
O
CAP
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

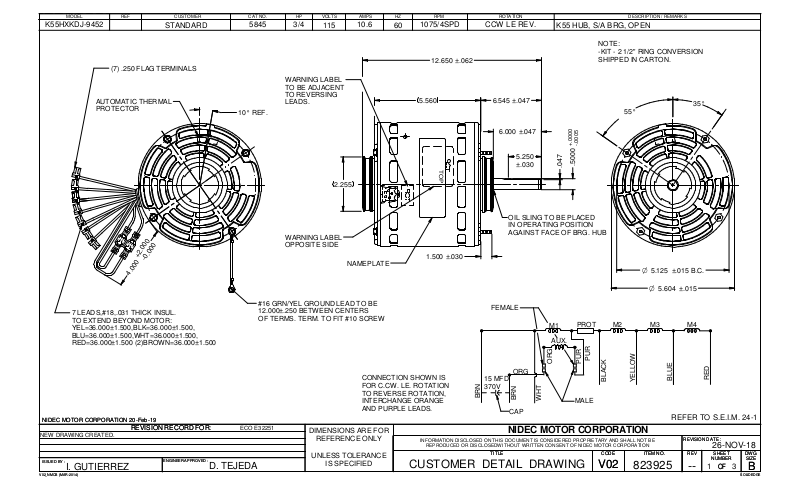

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
5.604O±.015
M3
W
O
L
L
E
Y
823925
M4
E
U
L
B
D
E
R
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
26-NOV-18
REV
REV
--
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
DWG
DWG
SIZE
SIZE
B
B
