Page 1
MODEL REF
K55HXKDF-9449
REVERSING LEADS
(2) PURPLE= 4.000
(2) ORANGE= 4.000
4.000
AUTOMATIC
THERMAL
PROTECTOR
+2.000
-0.000
CUSTOMER
STANDARD
HP
1/2 5841
VOLTS
AMPS
3.3-3.1
HZ
60
RPM
1075/4 SPD
ROTATION
CCW LEAD END, REV208-230
12.750 ±.062
6.150
10°
5.668
WARNING LABEL
TO BE ADJACENT
6.000 ±.047
TO REVERSING
LEADS
8-32 THR'D
5.250
TOP
TOP
2.250
.500
CAT. NO.
+.0000
-.0005
K55 HUB, S/A BRG. OPEN
DESCRIPTION / REMARKS
5.625
5.125OB.C.
55°
.453
.438
35°
7 LEADS #18 LEAD .031 THICK INSUL.
WITH .250 FLAG TYPE Q.C.TERMINALS
TO EXTEND BEYOND MOTOR: 36.000u1.500
YELLOW, BLUE, RED, BLACK, WHITE AND
(2) BROWN
NIDEC MOTOR CORPORATION 26-Sep-18
NIDEC MOTOR CORPORATION 26-Sep-18
NEW DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
#16 GREEN/YEL GROUND LEAD TO BE
12.000u.250 BETWEEN CENTERS
OF TERMS. TERM. TO FIT #10 SCREW
ECO: E32250
Z. TREVIÑO
NAMEPLATE
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
OIL SLING TO BE PLACED
WARNING LABEL
(OPPOSITE SIDE)
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB
1.500 ±.062
NOTE:
KIT- 2 1/2" RING CONVERSION
SHPPED IN CARTON
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE

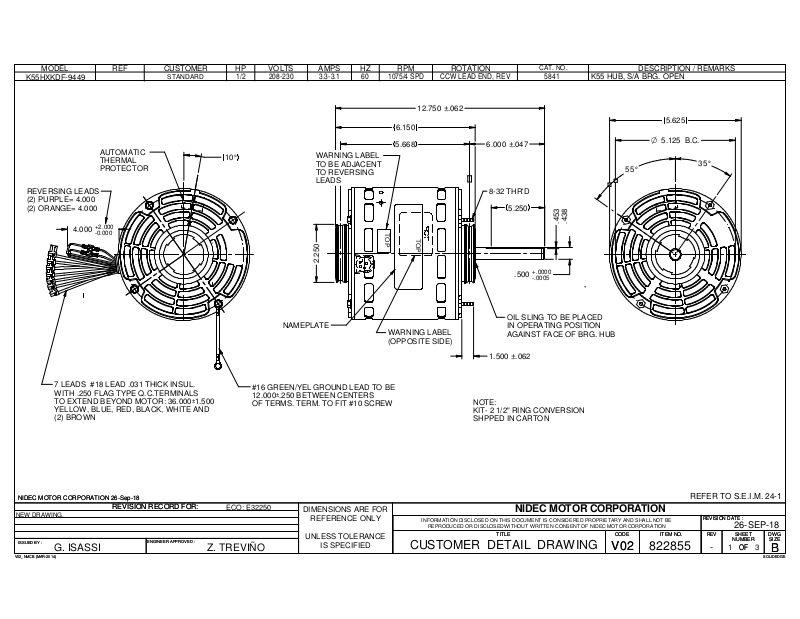

CUSTOMER DETAIL DRAWING
CODE ITEM NO.
CODE ITEM NO.
V02
V02
822855
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
26-SEP-18
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
