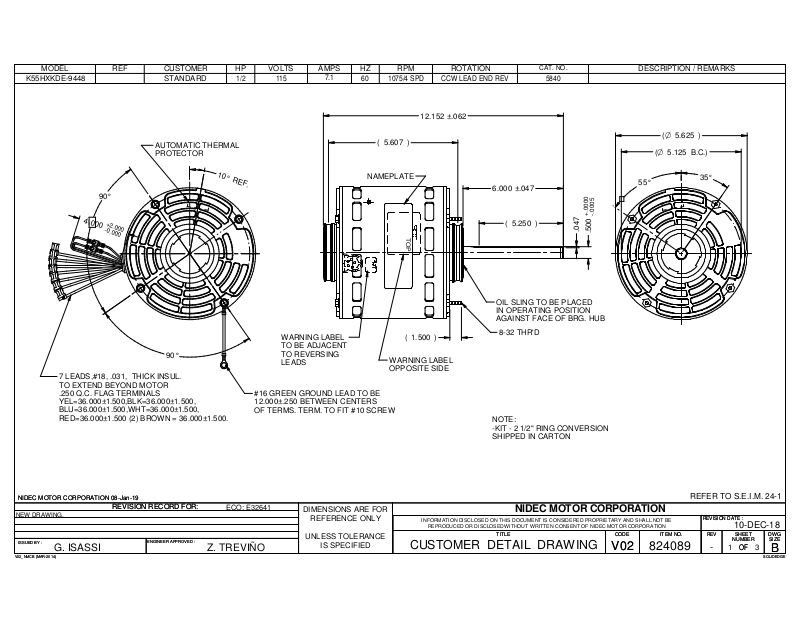

US Motors 5840 Dimensional Sheet

MODEL REF

K55HXKDE-9448

4

.

7 LEADS,#18, .031, THICK INSUL.
TO EXTEND BEYOND MOTOR
.250 Q.C. FLAG TERMINALS
YEL=36.000±1.500,BLK=36.000±1.500,
BLU=36.000±1.500,WHT=36.000±1.500,
RED=36.000±1.500 (2) BROWN = 36.000±1.500.

CUSTOMER
STANDARD

HP

1/2

VOLTS

115

AMPS

7.1

HZ

60

RPM

1075/4 SPD

ROTATION

CCW LEAD END REV

CAT. NO.

5840

DESCRIPTION / REMARKS

12.152 ±.062

5.625(

55°

O

5.125(

O

AUTOMATIC THERMAL

5.607( )

PROTECTOR

1

0

°

R

E

F

.

90°

0

0

+

2

0

.

0

0

0

-

0

.

0

0

0

NAMEPLATE

TOP

6.000 ±.047

5.250( )

+.0000

-.0005

.047

.500

)

B.C.)

35°

OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB

8-32 THR'D

90°

WARNING LABEL
TO BE ADJACENT
TO REVERSING
LEADS

1.500( )

WARNING LABEL
OPPOSITE SIDE

#16 GREEN GROUND LEAD TO BE

12.000±.250 BETWEEN CENTERS
OF TERMS. TERM. TO FIT #10 SCREW

NOTE:

-KIT - 2 1/2" RING CONVERSION
SHIPPED IN CARTON

NIDEC MOTOR CORPORATION 08-Jan-19

NIDEC MOTOR CORPORATION 08-Jan-19

NEW DRAWING.

ISSUED BY :

ISSUED BY :

G. ISASSI

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

ECO: E32641

Z. TREVIÑO

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

NIDEC MOTOR CORPORATION

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

824089

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

-

10-DEC-18

SHEET

SHEET

NUMBER

NUMBER

1 3

OF

OF

DWG

DWG

SIZE

SIZE

B

B
