MODEL
K55HXKDB-9445
REF
STANDARD
HP ROTATION
1/3
VOLTS
208-230 2.3-2.2 60
AMPS
HZ
RPM
1075/4 SPD
C.CW LE REV
CAT. NO
5836
DESCRIPTION / REMARKSCUSTOMER
REVERSING LEADS:
(2) PURPLE=4.000
(2) ORANGE=4.000
AUTOMATIC
THERMAL
PROTECTOR
4
.
0
0
0
+
2
.
0
-
.
0
0
0
(7) .250 FLAG TERMINALS
(7) LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
YEL=36.000u1.500, BLK=36.000u1.500,
BLU=36.000u1.500, WHT=36.000u1.500,
RED=36.000u1.500, (2) BRN=36.000u1.500
NOTE:
-KIT - 2 1/2" RING CONVERSION
SHIPPED IN CARTON
11.650
1
0
°
R
E
F
.
6.545 ±.0474.560
55°
35°
6.000 ±.047
5.250
TOP
.047
2.255
+.0000
.500
-.0005
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB
WARNING LABEL TO BE
ADJACENT TO
REVERSING LEADS
NAMEPLATE
WARNING LABEL
OPPOSITE SIDE
1.500 REF.
5.125 DIA. B.C.
5.625
#16 GRN/YEL GROUND LEADS TO BE
12.000u.250 BETWEEN CENTERS
OF TERMS. TERM TO FIT #10 SCREW
CONNECTION SHOWN IS
FOR C.CW LE. ROTATION
TO REVERSE ROTATION,
INTERCHANGE ORANGE
AND PURPLE LEADS
N
R
B
FEMALE
ORG
T
N
H
R
B
W
CAP 6 MFD/370 V
M1
G
R
O
AUX.
PROT
MALE
M2
R
R
U
U
P
P
K
C
A
L
B
M3
W
O
L
L
E
Y
M4
E
U
L
B
D
E
R
NIDEC MOTOR CORPORATION 09-Oct-18
NIDEC MOTOR CORPORATION 09-Oct-18
CREATED NEW DRAWING
ISSUED BY :
ISSUED BY :
F. GARCIA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO: E32195
P. RODRIGUEZ
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

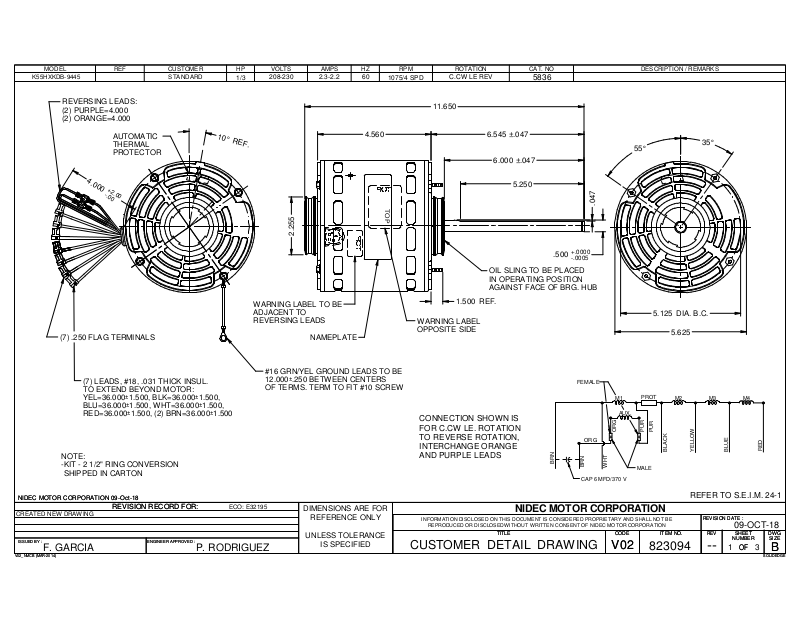

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
823094
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
--
09-OCT-18
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
