Page 1
MODEL REF
K55HXKCW-9441
AUTOMATIC THERMAL
PROTECTOR
(7).250 FLAG TERMINALS
CUSTOMER
STANDARD
5831
HP VOLTS AMPS HZ RPM
1/4
208-230
1.8-1.7
1075/4 SPD CCW LE REV.
60
11.40 ±.062
ROTATIONCAT NO.
DESCRIPTION / REMARKS
K55 HUB, SLV BRG. OPEN
NOTE:
-KIT - 2 1/2" RING CONVERSION
SHIPPED IN CARTON.
REVERSING LEADS:
(2)PURPLE=4.000
(2)ORANGE=4.000
4
.
0
+
2
0
.
0
0
0
0
-
0
.
0
0
0
7 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
YEL=36.000±1.500,BLK=36.000±1.500,
BLU=36.000±1.500,WHT=36.000±1.500,
RED=36.000±1.500 (2)BROWN=36.000±1.500
NIDEC MOTOR CORPORATION 20-Feb-19
NIDEC MOTOR CORPORATION 20-Feb-19
NEW DRAWING CREATED.
ISSUED BY :
ISSUED BY :
I. GUTIERREZ
REVISION RECORD FOR:
REVISION RECORD FOR:
10°
REF
5.125O±.015 B.C.
5.604O±.015
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO E32251
D. TEJEDA
WARNING LABEL TO BE
ADJACENT TO
REVERSING LEADS
2.255
NAMEPLATE
WARNING LABEL
OPPOSITE SIDE
#16 GRN/YEL GROUND LEAD TO BE
12.000±.250 BETWEEN CENTERS
OF TERMS. TERM. TO FIT #10 SCREW
CONNECTION SHOWN IS
FOR C.CW. LE. ROTATION
TO REVERSE ROTATION,
INTERCHANGE ORANGE
AND PURPLE LEADS.
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
4.310
6.545 ±.047
+.0000
5.250
±.030
TOP
-.0005
.500
.047
55°
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB
1.500 REF.
4.918
FEMALE
M1
AUX.
G
R
O
ORG
)
C
N
R
B
CAP
N
R
B
(
T
H
W
PROT
R
U
P
MALE
R
U
P
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

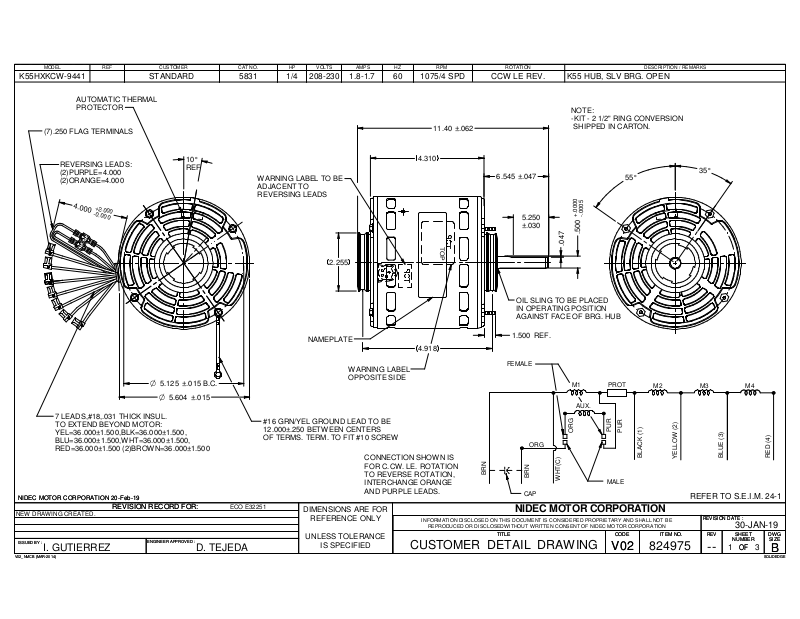

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
M2 M3
)
)
1
(
K
C
A
L
B
2
(
W
O
L
L
E
Y
824975
35°
M4
)
3
(
E
U
L
B
)
4
(
D
E
R
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
--
30-JAN-19
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
