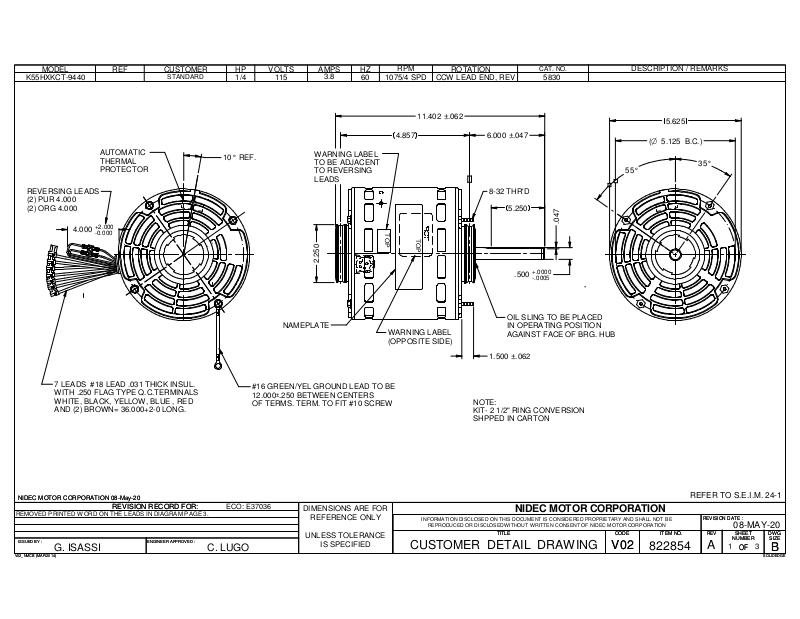

US Motors 5830 Dimensional Sheet

MODEL REF

K55HXKCT-9440

CUSTOMER

STANDARD

HP ROTATION
1/4 5830

VOLTS

AMPS

3.8

HZ

60

RPM

1075/4 SPD

CCW LEAD END, REV115

CAT. NO.

DESCRIPTION / REMARKS

AUTOMATIC
THERMAL
PROTECTOR

REVERSING LEADS
(2) PUR 4.000
(2) ORG 4.000

+2.000

4.000

-0.000

7 LEADS #18 LEAD .031 THICK INSUL.
WITH .250 FLAG TYPE Q.C.TERMINALS
WHITE, BLACK, YELLOW, BLUE , RED
AND (2) BROWN= 36.000+2-0 LONG.

10° REF.

WARNING LABEL
TO BE ADJACENT
TO REVERSING
LEADS

2.250

NAMEPLATE

#16 GREEN/YEL GROUND LEAD TO BE

12.000u.250 BETWEEN CENTERS
OF TERMS. TERM. TO FIT #10 SCREW

11.402 ±.062

4.857

TOP

TOP

WARNING LABEL
(OPPOSITE SIDE)

6.000 ±.047

8-32 THR'D

5.250

.047

+.0000

.500

-.0005

OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB

1.500 ±.062

NOTE:
KIT- 2 1/2" RING CONVERSION
SHPPED IN CARTON

55°

5.625

5.125(

O

B.C.)

35°

NIDEC MOTOR CORPORATION 08-May-20

NIDEC MOTOR CORPORATION 08-May-20

REMOVED PRINTED WORD ON THE LEADS IN DIAGRAM PAGE 3.

ISSUED BY :

ISSUED BY :

G. ISASSI

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

ECO: E37036

C. LUGO

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

NIDEC MOTOR CORPORATION

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

822854

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

A

08-MAY-20

SHEET

SHEET

NUMBER

NUMBER

1 3

OF

OF

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)
