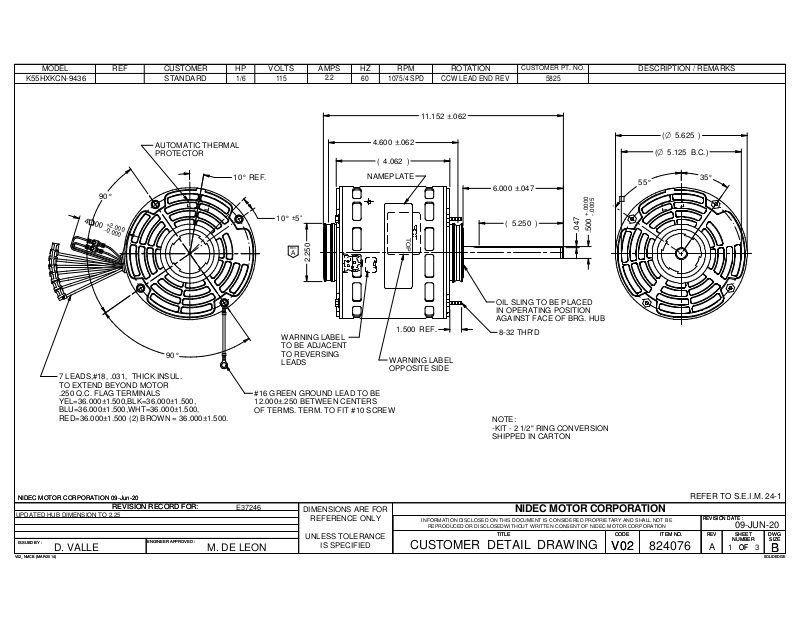

US Motors 5825 Dimensional Sheet

MODEL REF

K55HXKCN-9436

4

.

7 LEADS,#18, .031, THICK INSUL.
TO EXTEND BEYOND MOTOR
.250 Q.C. FLAG TERMINALS
YEL=36.000±1.500,BLK=36.000±1.500,
BLU=36.000±1.500,WHT=36.000±1.500,
RED=36.000±1.500 (2) BROWN = 36.000±1.500.

CUSTOMER
STANDARD

HP

1/6

VOLTS

AMPS

2.2

HZ

60

RPM

1075/4 SPD

ROTATION

CCW LEAD END REV115

CUSTOMER PT. NO.

5825

DESCRIPTION / REMARKS

11.152 ±.062

5.625(

55°

O

5.125(

O

AUTOMATIC THERMAL
PROTECTOR

10° REF.

90°

10°u5

0

0

+

2

0

.

0

0

0

-

0

.

0

0

0

v

REV.

A

2.250

4.600 ±.062

4.062( )

NAMEPLATE

TOP

6.000 ±.047

5.250( )

+.0000

-.0005

.047

.500

)

B.C.)

35°

OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB

WARNING LABEL

1.500 REF.
8-32 THR'D

TO BE ADJACENT

90°

TO REVERSING
LEADS

WARNING LABEL
OPPOSITE SIDE

#16 GREEN GROUND LEAD TO BE

12.000±.250 BETWEEN CENTERS
OF TERMS. TERM. TO FIT #10 SCREW

NOTE:

-KIT - 2 1/2" RING CONVERSION
SHIPPED IN CARTON

NIDEC MOTOR CORPORATION 09-Jun-20

NIDEC MOTOR CORPORATION 09-Jun-20

UPDATED HUB DIMENSION TO 2.25

ISSUED BY :

ISSUED BY :

D. VALLE

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

E37246

M. DE LEON

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

NIDEC MOTOR CORPORATION

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

824076

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

A

09-JUN-20

SHEET

SHEET

NUMBER

NUMBER

1 3

OF

OF

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)
