3 COMBINATION Q.C & TERM.
STUDS & 2 Q.C. TERM.
NAMEPLATE
RED
BLK
TO REVERSE ROTATION
INTERCHANGE RED AND
BLACK LEADS
CONNECTIONS
5
2
L
C
H
LO SPEED
COMMON
HI SPEED
SUPPLIED DETACHED
1 -BUSHING
1 -SHAFT
1 -BAG
6.312
3.500
NIDEC MOTOR CORPORATION 20-Oct-17
AUTOMATIC
THERMAL
PROTECTOR
REV.
F
MODEL REF
SA55JXFGS-4786 -
SHEET
REV
NUMBER
OF
1 1
REVISION DATE
CHANGED VIEW OF GROUND LEAD BEHIND OF BASE LEAD END.
F
21-OCT-17
ISSUED BY
C. LUGO
5.625
2
C
H
L
5
2.4372.437
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
CONN LABEL
1/2-14 N.P.S.
THR'D
GREEN
GROUND
SCREW
CONDUIT
PLUG
3 TERM. STUD NUTS
3 TERM. STUD WASHERS
1 EA. PER TERM STUD
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
STANDARD
ECO E29754
F. FLORES
B. GAITAN
1/3 / 1/8
10.437
4.500
TOP
2.7501.5001.500
115 5.9/3.6
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
60 1725/1140
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

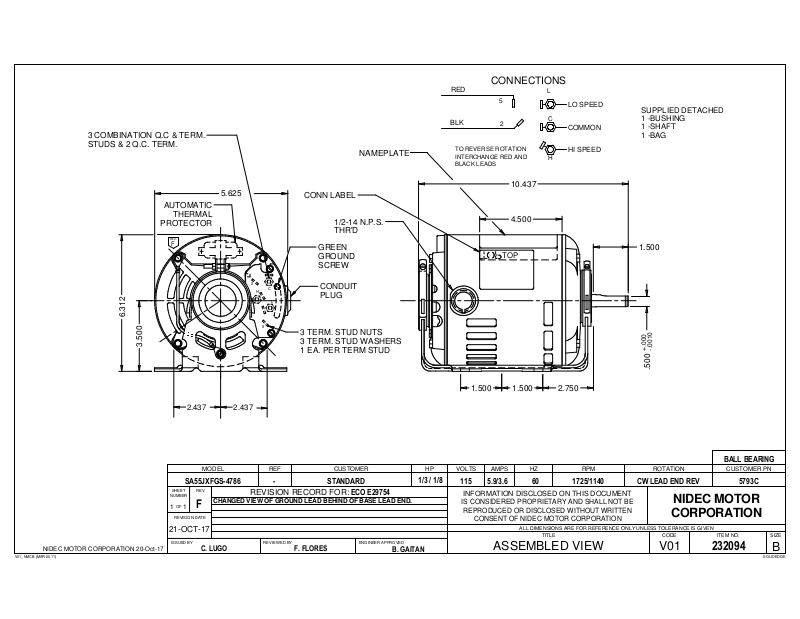

ASSEMBLED VIEW
1.500
+.000
-.0010
.500
BALL BEARING
CUSTOMER PN
CW LEAD END REV 5793C
NIDEC MOTOR
CORPORATION
V01
232094
B
SOLIDEDGEV01_NMCB (MAR-2011)
