US Motors 5563EOR Dimensional Sheet

VAR

M055PWESL-1240

001

MODEL

CUSTOMER

WHOLESALE HAC

3.624

RPM ROTATION

1075/VAR SPD

CONTROL WARNING LABEL
(OPPOSITE SIDE) REF

0.50 u.03 TYP

C.CW LE, REV

HP

1/3-1/5

3.662

VOLTS

208-230

10.625 ±.090

NAMEPLATE

AMPS HZ

2.5

60&50

5.000 ±.047

TAP 1 RPM

0V, 1075
24V, 500

TAP 2 ROTATION

0V, CCWLE
24V, CWLE

CAT. PART NO.

5563EOR

SOFTWARE VER

277

3.624

8.600

3 COMMUNICATION LEADS 18# GA.
2/64 THK INSUL 1/4" FEMALE Q.C.
YELLOW (TI), ORANGE (T2 ),
BLUE (COM)

NIDEC MOTOR CORPORATION 17-Oct-19

NIDEC MOTOR CORPORATION 17-Oct-19

CREATED NEW DRAWING

ISSUED BY :

ISSUED BY :

F. GARCIA

REVISION RECORD FOR:

REVISION RECORD FOR:

#8-32 THREAD
4 PLACES

CONTROL ASM.

SOFTWARE VERSION LABEL
(OPPOSITE SIDE) REF

JC: 73483

ENGINEER APPROVED :

ENGINEER APPROVED :

B. GAITAN

TOP

TOP

TOP

54.00+2.00/-1.00
TYP

TOLERANCES ON DIMENSIONS

(UNLESS OTHERWISE SPECIFIED)

INCHES

.XX = ± .010

.XXX = ±.005

ANGLES X°= ±1°

mm

4.000 ±.030

90°

.453
.438

RESCUE LABEL

WATER SLINGER

5.600O OVER SHELL

WARNING LABEL
BILINGUAL

DRAIN HOLES
2 PLACES

HEYCO CONDUIT FITTING
FOR 1/2" FLEXIBLE CONDUIT
TO BE TIGHTENED WITHIN
"20-24" IN-LB

3 POWER LEADS:
18# GA. 2/64 THK INSUL, 1/4" FEMALE Q.C.
BLACK (L1), BROWN (L2/N)
18# GA. 2/64 THK INSUL,
#10 EYELET GREEN/ YELLOW(GND)

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

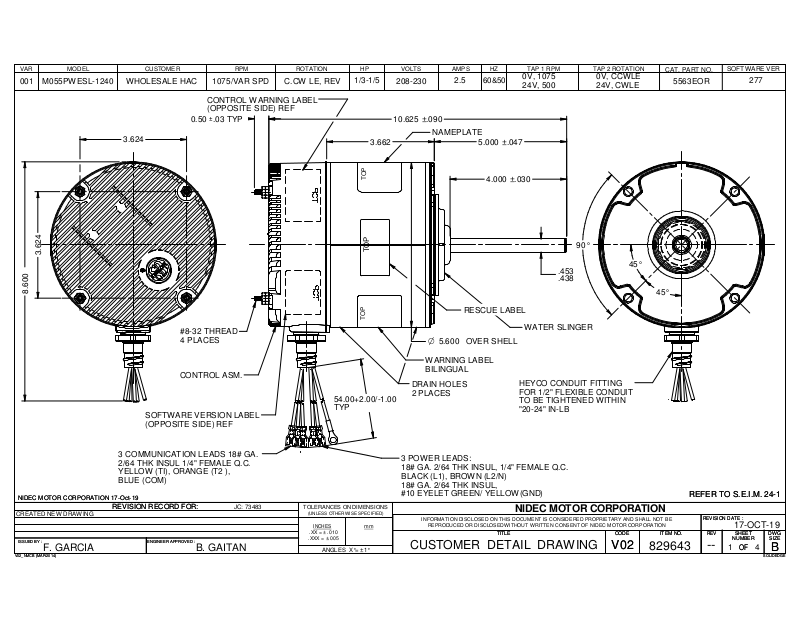

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

45°

45°

829643

REFER TO S.E.I.M. 24-1

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

--

17-OCT-19

SHEET

SHEET

NUMBER

NUMBER

OF

OF

1 4

DWG

DWG

SIZE

SIZE

B

B
