MODEL REF
K55XZSCA-1006
(2) .250 FLAG TYPE Q.C. TERM
WITH INSUL GRIP
2 BROWN LEADS, #18 .031
THICK INSUL. TO EXTEND
20.000+2.000-0.000 BEYOND
MOTOR
CUSTOMER
STANDARD
HP
3/4 K5489
VOLTS
AMPS
5.0/2.5
HZ
60
RPM
1075
ROTATION
CCW LEAD END, REV208-230/460
CUSTOMER PT. NO.
#16 GREEN GROUND LEAD TO BE
6.000u.250 BETWEEN CENTERS
OF TERMS. TERM. TO FIT #10 SCREW
12.40 ±.062
K55 HUB, MTD. BALL BEARING OPEN
DESCRIPTION / REMARKS
AUTOMATIC
THERMAL
PROTECTOR
0
0
0
.
0
2
0
+
0
.
0
-
0
0
0
.
4
SPLIT IN MTG. RING
VOLTAGE RECEPTACLE
4 LEADS, #18 .031 THICK INSUL.
2 YELLOW & 2 ORANGE FOR
REVERSING ROTATION
NOTES:
1.- TERMINALS FOR 1, 2 AND 3 IN VOTAGE
CHANGE RECEPTACLE MUST BE UN PLACE
(1&2 ARE USED ON LOW VOTAGE, 2&3
ARE FOR HIGH VOTAGE).
NIDEC MOTOR CORPORATION 26-Sep-18
NIDEC MOTOR CORPORATION 26-Sep-18
NEW DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
.750u.062
SKINNED
ECO: E32250
Z. TREVIÑO
6.969
WARNING LABEL
NAMEPLATE
TOP
2.250
1
2
3
TOP
VOLTAGE
CONN.
IDENT.
LABEL
(2) .250 RECEPTACLES
(2) #12 LEADS WHITE AND BLACK
TO EXTEND 20.000+2.000-0.000
BEYOND MOTOR
SHIPPED DETACHED:
(1) - CAPACITOR
(1) - CAPACITOR CLAMP
(1) - CAPACITOR CAP
(2) - 8-18 SCREWS
(1) - KEY
(1) - BUSHING
TO REVERSE ROTATION INTERCHANGE ORANGE & YELLOW LEADS
DIMENSIONS ARE FOR
REFERENCE ONLY
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
UNLESS TOLERANCE
IS SPECIFIED

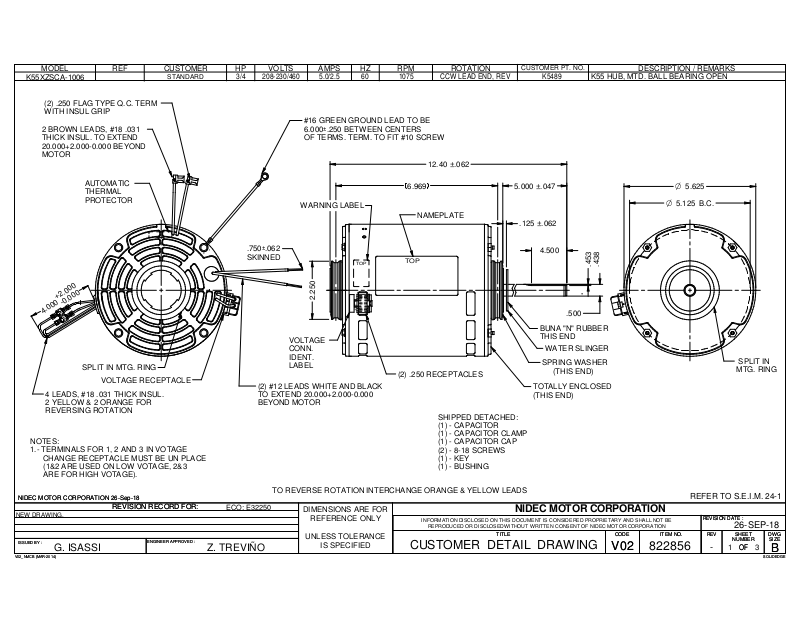

CUSTOMER DETAIL DRAWING
5.000 ±.047
.125 ±.062
4.500
.453
.438
.500
BUNA "N" RUBBER
THIS END
WATER SLINGER
SPRING WASHER
(THIS END)
TOTALLY ENCLOSED
(THIS END)
NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
O
5.125OB.C.
822856
5.625
SPLIT IN
MTG. RING
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
26-SEP-18
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
DWG
DWG
SIZE
SIZE
B
B
