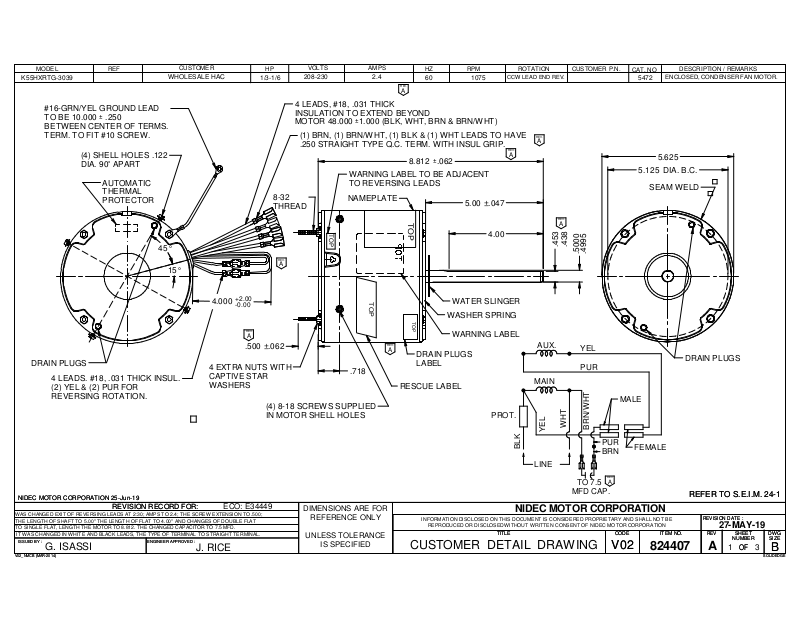

US Motors 5472 Dimensional Sheet

MODEL

K55HXRTG-3039

REF

#16-GRN/YEL GROUND LEAD
TO BE 10.000 u .250
BETWEEN CENTER OF TERMS.
TERM. TO FIT #10 SCREW.

(4) SHELL HOLES .122
DIA. 90v APART

AUTOMATIC
THERMAL
PROTECTOR

CUSTOMER

WHOLESALE HAC

45°

15°

HP

1/3-1/6

VOLTS

208-230

AMPS

2.4

HZ

60

REV.

A

4 LEADS, #18, .031 THICK
INSULATION TO EXTEND BEYOND
MOTOR 48.000 u1.000 (BLK, WHT, BRN & BRN/WHT)

(1) BRN, (1) BRN/WHT, (1) BLK & (1) WHT LEADS TO HAVE
.250 STRAIGHT TYPE Q.C. TERM. WITH INSUL GRIP.

8.812u.062

WARNING LABEL TO BE ADJACENT
TO REVERSING LEADS

8-32
THREAD

REV.

A

NAMEPLATE

TOP

5.00 ±.047

T
O

P

1075

ROTATION

CCW LEAD END REV.

REV.

A

4.00

CUSTOMER P.N.RPM

REV.

A

CAT. NO

5472

DESCRIPTION / REMARKS

ENCLOSED, CONDENSER FAN MOTOR.

5.625

5.125 DIA. B.C.

SEAM WELD

REV.

A

.453

.438

.5000

.4995

+2.00

4.000

-0.00

REV.

A

.500 ±.062

DRAIN PLUGS

4 LEADS. #18, .031 THICK INSUL.
(2) YEL & (2) PUR FOR

4 EXTRA NUTS WITH
CAPTIVE STAR
WASHERS

REVERSING ROTATION.

NIDEC MOTOR CORPORATION 25-Jun-19

NIDEC MOTOR CORPORATION 25-Jun-19

WAS CHANGED EXIT OF REVERSING LEADS AT 2:30; AMPS TO 2.4; T HE SCREW EXTENSION TO .500;
THE LENGTH OF SHAFT TO 5.00" THE LENGTH OF FLAT TO 4. 00" AND CHANGES OF DOUBLE FLAT
TO SINGLE FLAT, LENGTH THE MOTOR TO 8.812. T HE CHANGED CAPACITOR TO 7.5 MFD.

IT WAS CHANGED IN WHITE A ND BLACK LEADS, THE TYPE OF TERMINAL TO STRAIGHT TERMINAL.

ISSUED BY :

ISSUED BY :

G. ISASSI

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

ECO: E34449

J. RICE

.718

(4) 8-18 SCREWS SUPPLIED
IN MOTOR SHELL HOLES

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

TOP

TOP

WATER SLINGER

WASHER SPRING

WARNING LABEL

REV.

A

DRAIN PLUGS
LABEL

RESCUE LABEL

PROT.

AUX.

YEL

DRAIN PLUGS

PUR

MAIN

T
H

W

/

T

N

H

L
E
Y

K
L
B

R

W

B

PUR
BRN

MALE

FEMALE

LINE

REV.

TO 7.5

MFD CAP.

A

REFER TO S.E.I.M. 24-1

REFER TO S.E.I.M. 24-1

NIDEC MOTOR CORPORATION

REVISION DATE :

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

824407

REVISION DATE :

27-MAY-19

REV

SHEET

REV

SHEET

NUMBER

NUMBER

1 3

A

OF

OF

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)
