Page 1
-
.
0
0
1
0
5.625
5.125 DIA. B. C.
AUTOMATIC THERMAL
PROTECTOR
#16 GRN/YEL GROUND LEAD TO BE
12.000±.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW
NAMEPLATE
5 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
WHT=36.000 ± 1.5 ,BLK=36.000 ± 1.5
BLU=36.000 ± 1.5 ,YEL=36.000 ± 1.5
RED=36.000 ± 1.5.
(5).250 STRAIGHT TYPE Q.C.
TERMS. WITH INSUL GRIP
(2).250 INSULATED
STRAIGHT TYPE Q.C.
TERMINALS
2 LEADS, #18, .031
THICK INSUL. FOR
CAPACITOR
BROWN=36.000±1.5
4 LEADS,#18,.031
THICK INSUL FOR
REVERSING
ROTATION
(2)PUR=4.000 +1-0
(2)ORG=4.000 +1-0
11.607
6.062
4.187
6.607
T
O
P
T
O
P
T
O
P
DANGER LABEL
WARNING LABEL
TO BE ADJACENT
TO REVERSING
LEADS
1.125
RESCUE LABEL
5.000
4.500
ENDSHIELDS
OPEN
(BOTH ENDS)
.625u.062
0
0
0
0
.
+
0
7
0
4
5
0
.
.
NIDEC MOTOR CORPORATION 11-Apr-19
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXDWJ-1298 A12938
SHEET
NUMBER
1 1
REV
OF
F
REVISION DATE
DELETED INSTRUCTION FORM
11-APR-19
ISSUED BY
D. VALLE K. MORT
WHOLESALE HAC
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
E34194
B. GAITAN
3/4 208-230 4.1
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION

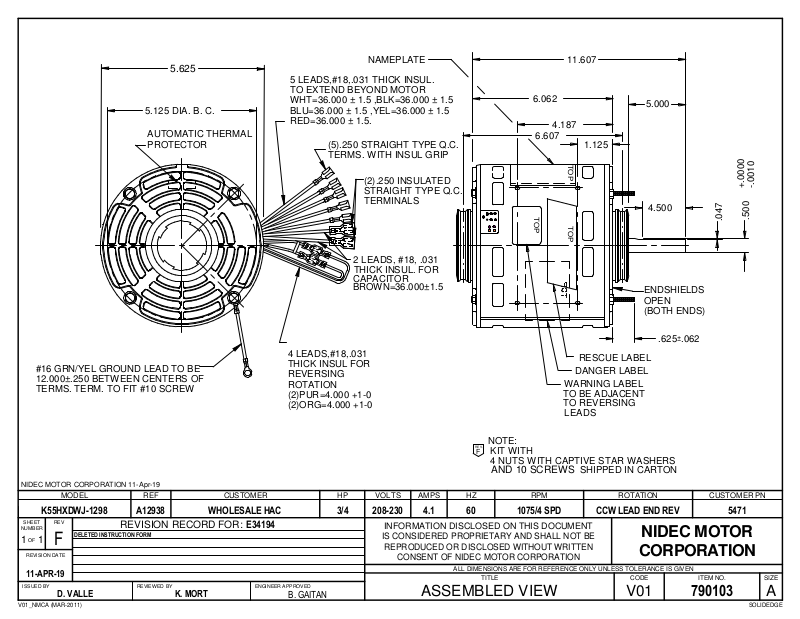

ASSEMBLED VIEW
NOTE:
REV.
F
KIT WITH
4 NUTS WITH CAPTIVE STAR WASHERS
AND 10 SCREWS
60 1075/4 SPD
SHIPPED IN CARTON
CCW LEAD END REV 5471
NIDEC MOTOR
CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
V01
790103
A
SOLIDEDGEV01_NMCA (MAR-2011)
