Page 1
MODEL
K55HXJZH-2375
AUTOMATIC THERMAL
REF
PROTECTOR
CUSTOMER
WHOLESALE HAC
HP
0.750
VOLTS
115
(2).250 INSULATED STRAIGHT TYPE Q.C.
TERMS.BRN = 36.000±1.5
CENTERLINE OF
SHELL HOLE
1
0
°
R
E
1
0
°
±
5
°
F
.
NAMEPLATE
(8) HOLES
.120-.124 DIA.
2.500
+2.000
3.000
-0.000
AMPS
8.1
12.152
6.607
4.187
T
O
P
± 0.062
T
O
P
T
O
P
HZ
60
RPM
1075/4 SPD
1.125
± .047
5.000
4.500
FLAT
ROTATION
CCW LEAD END REV
.047
0.5000
0.4995
CATALOG NO.
5470
5.125 DIA. B.C.
°
5
5
DESCRIPTION / REMARKS
DIRECT DRIVE BLOWER MULTI-HORSEPOWER MOTOR.
5.625
3
5
°
#16 GRN/YEL GROUND
LEAD TO BE 12.000±.250
BETWEEN CENTERS
OF TERMS. TERM TO
FIT #10 SCREW
REV.
B
NOTE:
KIT WITH 10 SPECIAL SCREWS
& 4 NUTS WITH CAPTIVE STAR WASHERS
TO BE SHIPPED IN TOP OF CARTON
NIDEC MOTOR CORPORATION 07-May-19
NIDEC MOTOR CORPORATION 07-May-19
DELETED INSTRUCTION FORM FROM NOTE.
ISSUED BY :
ISSUED BY :
E. GONZALEZ
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
4 LEADS,#18,.031
THICK INSUL FOR
REVERSING ROTATION
(2) PUR=3.000 +2-0
(2) ORG=3.000 +2-0
5 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
YEL=36.000±1.500,BLK=36.000±1.500,
BLU=36.000±1.500,WHT=36.000±1.500,
RED=36.000±1.500
WITH 0.250 FLAG TYPE Q.C.
THERMS WITH INSUL GRIP
ECO E34261
DIMENSIONS ARE FOR
UNLESS TOLERANCE
K. MORT
REFERENCE ONLY
IS SPECIFIED
RESCUE LABEL
DANGER LABEL
REVERSING LEADS
WARNING LABEL
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

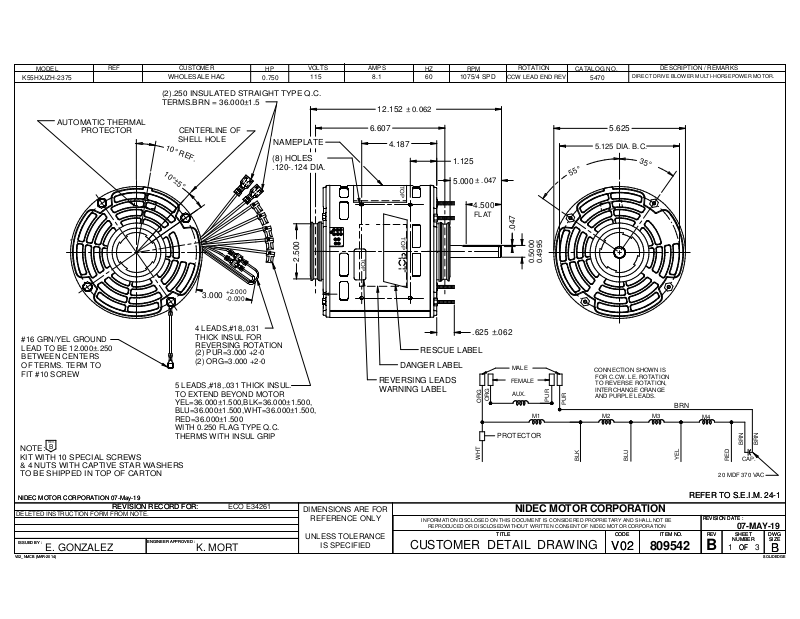

CUSTOMER DETAIL DRAWING
.625 ±.062
G
G
R
R
O
O
PROTECTOR
T
H
W
TITLE
TITLE
MALE
FEMALE
AUX.
M1
R
U
P
CONNECTION SHOWN IS
FOR C.CW. LE. ROTATION
TO REVERSE ROTATION,
INTERCHANGE ORANGE
R
AND PURPLE LEADS.
U
P
M2
K
L
B
U
L
B
NIDEC MOTOR CORPORATION
CODE ITEM NO.
CODE ITEM NO.
V02
V02
BRN
M3
L
E
Y
809542
M4
N
N
R
R
B
B
D
E
R
CAP.
20 MDF 370 VAC
REFER TO S.E.I.M. 24-1
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
B
07-MAY-19
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
