Page 1
5.625
5.125 DIA. B.C.
NAMEPLATE
5.312
9.812
4.500
AUTOMATIC THERMAL
PROTECTOR
5 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
YEL=36.000±1.5,BLK=36.000±1.5,
BLU=36.000±1.5,WHT=36.000±1.5,
RED=36.000±1.5
4 LEADS,#18,.031
THICK INSUL FOR
REVERSING
ROTATION
(2)PUR=4.000 +2-0
(2)ORG=4.000 +2-0
(2).250 INSULATED
REV.
I
STRAIGHT TYPE Q.C.
TERMS.
BRN = 36.000±1.5.
(5).250 FLAG TYPE Q.C.
TERMS.WITH INSUL.GRIP
REV.
I
3.687
1.125
T
O
P
4.000
T
O
P
T
O
P
0
5
0
0
0
0
0
0
.
.
-
+
0
7
0
4
5
0
.
.
ENDSHIELDS
OPEN (BOTH ENDS)
+.125
1.000
- 0
RESCUE LABEL
DANGER LABEL
WARNING LABEL TO
BE ADJACENT TO
REVERSING LEADS
NIDEC MOTOR CORPORATION 01-Nov-18
MODEL REF
K55HXWKM-1098
SHEET
NUMBER
1 1
REV
OF
I
REVISION DATE
CHANGE IN THE SHELL FROM U NOTCH TO SQUARE NOTCH AND CHANGE FROM
THE EXIT REVERSIBLE LEADS THROUGH OF VENTS TO SQUARE NOTCH.
A28349-X2
REVISION RECORD FOR:
07-NOV-18
ISSUED BY
O. CASTANEDA
REVIEWED BY ENGINEER APPROVED
J. SALINAS
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
WHOLESALE-HAC
E32532
B.GAITAN
1/3
208-230
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
2.4
CONSENT OF NIDEC MOTOR CORPORATION
60
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
825/4 SPD

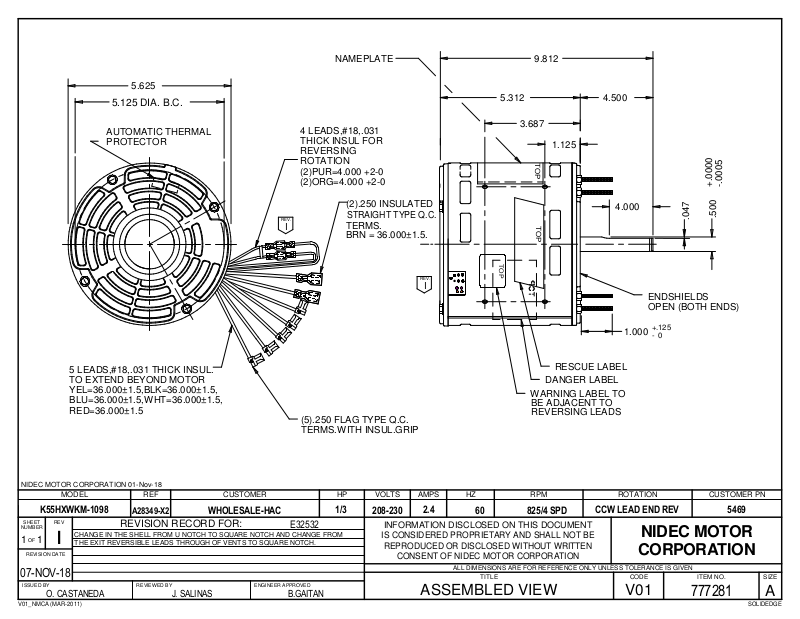

ASSEMBLED VIEW
CCW LEAD END REV 5469
CUSTOMER PN
NIDEC MOTOR
CORPORATION
V01
777281
A
SOLIDEDGEV01_NMCA (MAR-2011)
