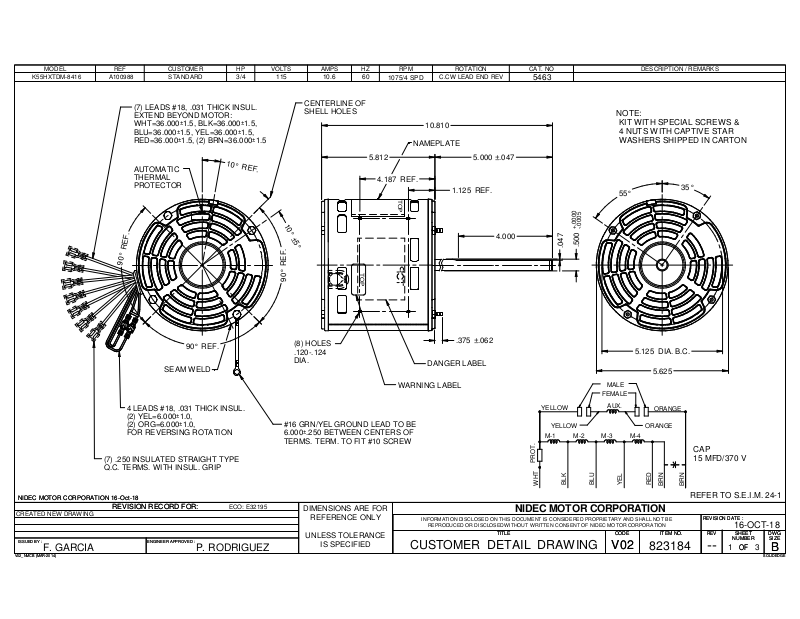

US Motors 5463 Dimensional Sheet

MODEL

K55HXTDM-8416

REF

A100988

STANDARD

HP ROTATION

3/4

VOLTS

115 10.6 60

AMPS

HZ

RPM

1075/4 SPD

C.CW LEAD END REV

CAT. NO

5463

DESCRIPTION / REMARKSCUSTOMER

R

°

0

9

(7) .250 INSULATED STRAIGHT TYPE
Q.C. TERMS. WITH INSUL. GRIP

NIDEC MOTOR CORPORATION 16-Oct-18

NIDEC MOTOR CORPORATION 16-Oct-18

CREATED NEW DRAWING

ISSUED BY :

ISSUED BY :

F. GARCIA

REVISION RECORD FOR:

REVISION RECORD FOR:

(7) LEADS #18, .031 THICK INSUL.
EXTEND BEYOND MOTOR:
WHT=36.000u1.5, BLK=36.000u1.5,
BLU=36.000u1.5, YEL=36.000u1.5,
RED=36.000u1.5, (2) BRN=36.000u1.5

1

0

°

AUTOMATIC

R

THERMAL
PROTECTOR

.

F

E

90° REF.

SEAM WELD

4 LEADS #18, .031 THICK INSUL.
(2) YEL=6.000u1.0,
(2) ORG=6.000u1.0,
FOR REVERSING ROTATION

ECO: E32195

ENGINEER APPROVED :

ENGINEER APPROVED :

P. RODRIGUEZ

CENTERLINE OF
SHELL HOLES

10.810

NAMEPLATE

NOTE:
KIT WITH SPECIAL SCREWS &
4 NUTS WITH CAPTIVE STAR
WASHERS SHIPPED IN CARTON

5.000 ±.0475.812

E

F

.

4.187 REF.

5.625

ORANGE

N
R
B

35°

CAP
15 MFD/370 V

N
R
B

T
O
P

1

0

°

±

5

°

T

90° REF.

O
P

(8) HOLES
.120-.124
DIA.

WARNING LABEL

#16 GRN/YEL GROUND LEAD TO BE

6.000u.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW

1.125 REF.

.375 ±.062

DANGER LABEL

4.000

YELLOW

M-1

PROT.

T
H

W

+.0000

-.0005

.500

.047

M-2 M-3

K
L
B

FEMALE

U
L
B

MALE

AUX.

55°

L
E
Y

5.125 DIA. B.C.

ORANGEYELLOW

M-4

D
E
R

REFER TO S.E.I.M. 24-1

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED
