Page 1
AUTOMATIC
THERMAL
PROTECTOR
GROMMET
(5).250 FLAG TYPE Q.C.
TERMS. WITH INSUL. GRIP
5 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
BRN=48.000 ± 1.5, BLK=48.000 ± 1.5,
RED=48.000 ± 1.5, WHT=48.000 ± 1.5,
BRN/WHT=48.000 ± 1.5.
DRAIN HOLE
(2) AND BLACK
PLUGS THIS
END.
WARNING LABEL
TO BE ADJACENT
TO REVERSING
LEADS
WARNING LABEL
9.562
NOTE:
(4) SCREWS INCLUDED IN CARTON
REV.
O
5.0004.562
(2) DRAIN HOLE
AND PLUG
.
F
E
R
°
0
9
#16 GRN/YEL GROUND LEAD TO BE
6.000±.250 BETWEEN CENTERS
OF TERMS. TERM TO FIT #10 SCREW
NAMEPLATE
4 EXTRA NUTS
WITH CAPTIVE
3.000 +2-0
68°
REF
23° REF
R
°
0
4
5
°
9
0
°
R
R
E
E
F
F
.
9
STAR WASHERS
RESCUE LABEL
8-32 THR'D
.
F
E
SEAM WELD
.500±.062
.718±.031
(4) EQUALLY SPACED
MOUNTING HOLES
AT 4.33 B.C.
TOP
TOP
(4) 8-32 SCREWS SUPPLIED
WITH MOTOR. SCREWS TO BE
STARTED IN HOLES AND RUN
IN BUT NOT TIGHT.
T
O
P
TOP
4 HOLES
.120-.124 DIA.
.030
l
.420
3.875
WATER SLINGER
TOTALLY ENCLOSED
ENDSHIELD
DRAIN PLUGS LABEL
+.0000
-.0005
.5000
(BOTH ENDS)
8
3
3
5
4
4
.
.
NIDEC MOTOR CORPORATION 11-Apr-19
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXWDJ-404
SHEET
NUMBER
1 1
REV
OF
O
REVISION DATE
DELETED INSTRUCTION FORM
11-APR-19
ISSUED BY
D. VALLE K. MORT B. GAITAN
WHOLESALE-HAC
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
E34194
1/3-1/6 208-230 2.6/1.8
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION

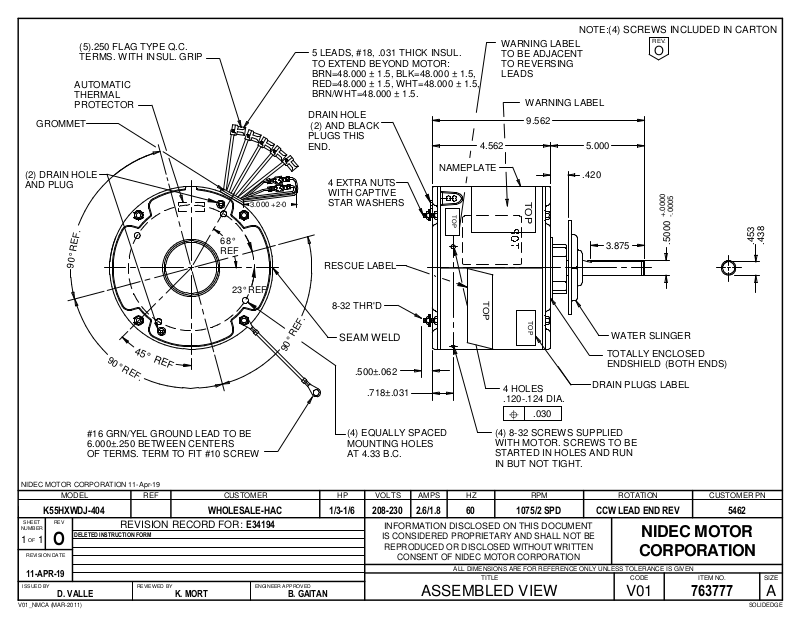

ASSEMBLED VIEW
60 1075/2 SPD
CCW LEAD END REV 5462
NIDEC MOTOR
CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
V01
763777
A
SOLIDEDGEV01_NMCA (MAR-2011)
