Page 1
AUTOMATIC THERMAL
PROTECTOR
5.625
5.125 DIA. B.C.
10.812
CENTERLINE OF
NAMEPLATE
5.900
SHELL HOLES
5.312
1
0
°
R
E
F
.
1
0
°
±
5
°
(2).250 INSULATED
STRAIGHT TYPE Q.C.
TERMS.
BRN = 36.000±1.5.
4.187
T
O
P
T
O
P
T
O
P
5.500
1.125
4.000
0
5
0
0
0
0
0
0
.
.
-
+
0
7
0
4
5
0
.
.
END SHIELDS
REV.
G
OPEN
(BOTH ENDS)
#16 GRN/YEL GROUND LEAD TO BE
12.000±.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW
NIDEC MOTOR CORPORATION 01-Dec-18
MODEL REF
K55HXENV-0115 A30757
SHEET
NUMBER
1 1
REV
OF
G
REVISION DATE
UPDATE EXIT OF REVERSING LEADS.
REVISION RECORD FOR:
01-DEC-18
ISSUED BY
REVIEWED BY ENGINEER APPROVED
O. CASTANEDA
9
0
°
R
E
F
.
J. SALINAS
4 LEADS,#18,.031
THICK INSUL FOR
REVERSING ROTATION
(2) PUR=3.000 +2-0
(2) ORG=3.000 +2-0
5 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
YEL=36.000±1.5,BLK=36.000±1.5,
REVERSING LEADS
WARNING LABEL
(5).250 FLAG TYPE Q.C.
TERMINAL WITH
INSUL GRIP .
RESCUE LABEL
DANGER LABEL
NOTE:
KIT WITH
4 NUTS WITH CAPTIVE STAR WASHERS
SHIPPED IN CARTON
BLU=36.000±1.5,WHT=36.000±1.5,
RED=36.000±1.5.
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
WHOLESALE - HAC
E33294
J. SALINAS
1/2 115 7.3
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION

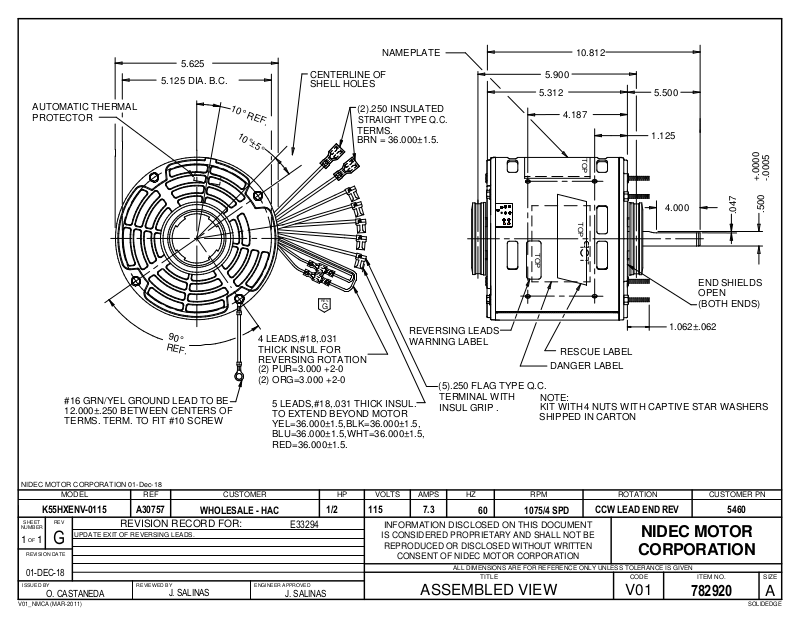

ASSEMBLED VIEW
60 1075/4 SPD
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
CCW LEAD END REV 5460
1.062±.062
CUSTOMER PN
NIDEC MOTOR
CORPORATION
V01
782920
A
SOLIDEDGEV01_NMCA (MAR-2011)
