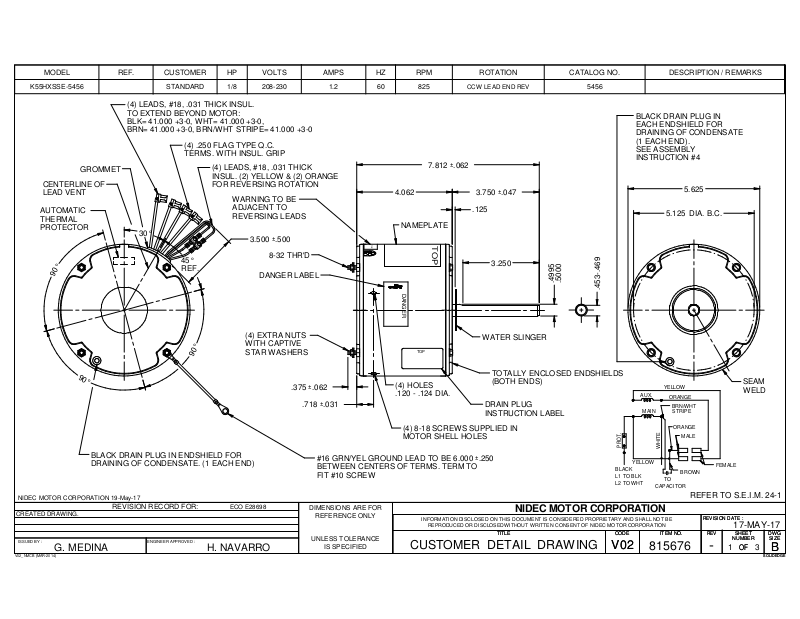

US Motors 5456 Dimensional Sheet
GROMMET
CENTERLINE OF
LEAD VENT
AUTOMATIC
THERMAL
PROTECTOR
°
0
9
REF.MODEL
CUSTOMER
STANDARDK55HXSSE-5456 1.2
HP
(4) LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
BLK= 41.000 +3-0, WHT= 41.000 +3-0,
BRN= 41.000 +3-0, BRN/WHT STRIPE= 41.000 +3-0
(4) .250 FLAG TYPE Q.C.
TERMS. WITH INSUL. GRIP
(4) LEADS, #18, .031 THICK
INSUL. (2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION
WARNING TO BE
ADJACENT TO
REVERSING LEADS
30°
45°
REF.
3.500 u.500
8-32 THR'D
DANGER LABEL
AMPSVOLTS
60208-2301/8 5456
RPMHZ
825
ROTATION
CCW LEAD END REV
DESCRIPTION / REMARKSCATALOG NO.
BLACK DRAIN PLUG IN
EACH ENDSHIELD FOR
DRAINING OF CONDENSATE
(1 EACH END).
SEE ASSEMBLY
7.812 u.062
4.062 3.750 u.047
.125
INSTRUCTION #4
5.625
5.125 DIA. B.C.
NAMEPLATE
T
O
P
T
O
P
DANGER
3.250
.4995
.5000
.453-.469
9
0
°
BLACK DRAIN PLUG IN ENDSHIELD FOR
DRAINING OF CONDENSATE. (1 EACH END)
NIDEC MOTOR CORPORATION 19-May-17
CREATED DRAWING.
ISSUED BY :
G. MEDINA
REVISION RECORD FOR:
ENGINEER APPROVED :
°
0
9
ECO E28698
H. NAVARRO
(4) EXTRA NUTS
WITH CAPTIVE
STAR WASHERS
.375 u.062
TOP
(4) HOLES
.120 - .124 DIA.
.718 u.031
(4) 8-18 SCREWS SUPPLIED IN
MOTOR SHELL HOLES
#16 GRN/YEL GROUND LEAD TO BE 6.000 u.250
BETWEEN CENTERS OF TERMS. TERM TO
FIT #10 SCREW
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
WATER SLINGER
TOTALLY ENCLOSED ENDSHIELDS
(BOTH ENDS)
DRAIN PLUG
INSTRUCTION LABEL
NIDEC MOTOR CORPORATION
TITLE
TITLE
YELLOW
AUX.
MAIN
E
T
I
YELLOW
H
W
TO
CAPACITOR
815676
PROT.
BLACK
L1 TO BLK
L2 TO WHT
CODE ITEM NO.
CODE ITEM NO.
V02
V02
ORANGE
BRN/WHT
STRIPE
ORANGE
MALE
BROWN
FEMALE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
1 3
-
SEAM
WELD
17-MAY-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGE
B
